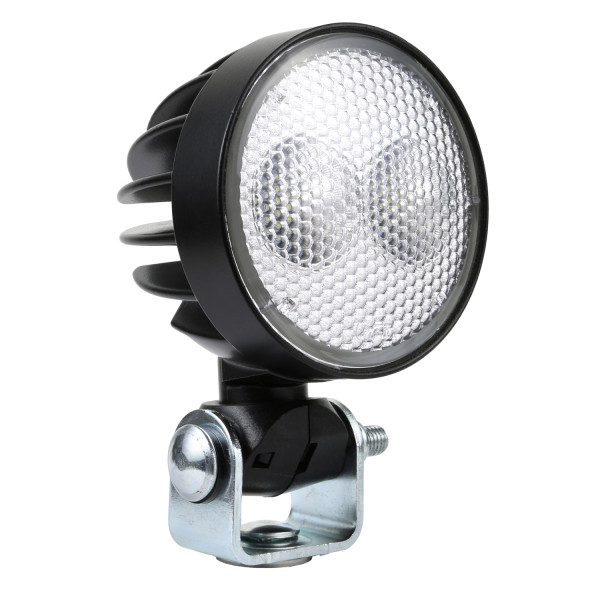

Trilliant® T26 LED Work Lights | 1800 Lumens

The new standard for Trilliant® performance in a small, mount-anywhere LED work light.This T26 design packs a full 1800 lumens in a small three-inch diameter package that uses only 17.5 Watts across 10-48 Volts. The family includes a far pattern and near pattern flood design, with a choice of pinch or pedestal mountings. The T26’s small size and rugged construction allows it to be mounted in places where larger or less rugged lights cannot fit or survive. Once on the job, the T26’s robust mechanical design ensures consistent performance and long life expectancy in the harshest environments.
Grote Loading Ajax Spinner

64E11Pinch Mount, Near Flood, w/ Pigtail, 10-48V

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Die-Cast Aluminium Housing
  • Finish: Black Powder Coated
  • Color: White
  • Lens Color: Clear
  • Voltage: 10-48V
  • Amperage: .35A-1.3A
  • Lumens: 1800
  • Light Pattern: Near Flood
  • Color Temperature: 5478K
  • Mounting Type: Pendant
  • Connection Type: Deutsch
  • Ingress Protection: IP69K
  • Regulations: ECE
  • VMRS: 034-006-031

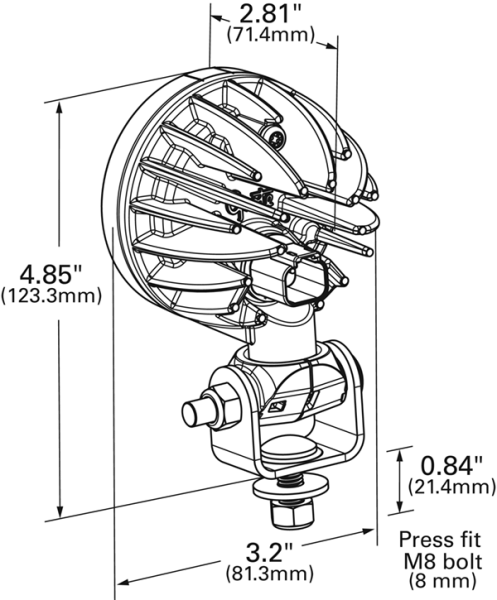

  • Diameter: 3"
  • Product Type: Work Light
  • Product Line: Trilliant®
  • Shape: Round
  • Warranty: 3 Years
Features & benefits
  • Efficient light engine projects 1790 effective Lumens using only 18 Watts of power across 10-48 Volts.
  • Small size combined with tough construction allows mounting in places where larger or less rugged lamps cannot fit or survive.
  • Rugged mechanical design ensures consistent performance and long life in the harshest environments.
  • Advanced circuit design provides electronically quiet operation; protects against EMI without interfering with other electronic devices.
  • Clean, white light designed to represent true colors, just like day light

Replacements, Tools & Accessories

Additional information

Grote’s Trilliant® 26 LED work lamp packs a wealth of features into its new, smallest addition to its work lamp line. The T26 design packs 1436 lumens in a small three-inch diameter package that uses only 17.5 Watts across 10-48 Volts. The family includes a far pattern and near pattern flood design, with a choice of pinch or pedestal mountings. The T26’s small size and rugged construction allows it to be mounted in places where larger or less rugged lamps cannot fit or survive. Once on the job, the T26’s robust mechanical design ensures consistent performance and long life expectancy in the harshest environments.

Application photos

T26 64g01 LED Light on Golf Cart Ranger with Grote LED off-road lights Trilliant 26 LED White Light T26 LED Work Light on forestry equipment Trilliant 26 LED White Light Application shot Komatsu with Grote lights at work site Komatsu with Grote Trilliant LED lights at a work site

Customer reviews

  • 64G11

    The 64G11 has been a very tough product. It manages to survive in the worst conditions. One of worst I believe is a coal mine. They manage to break every thing they touch with the exception of this light. The price of this light is very appealing even when the coal mine is in cost savings mode the light is very affordable. I tell many customers if they want an affordable, versatile and very bright light, this is the one for you.

    Eric S Jun 24, 2016

  • 64G01

    Looks good, performs great! Versatile mounting, having multiple lights allows you to point it where you need light. When four-wheeling at night, these let you bring daylight with you!

    Jim H Jun 17, 2016

  • 64G11

    This light has been on a town plow truck for two years now and is still working with no corrosion visible. The older light would have been replaced three or four times by now.. Great product.

    Mike S May 02, 2016
