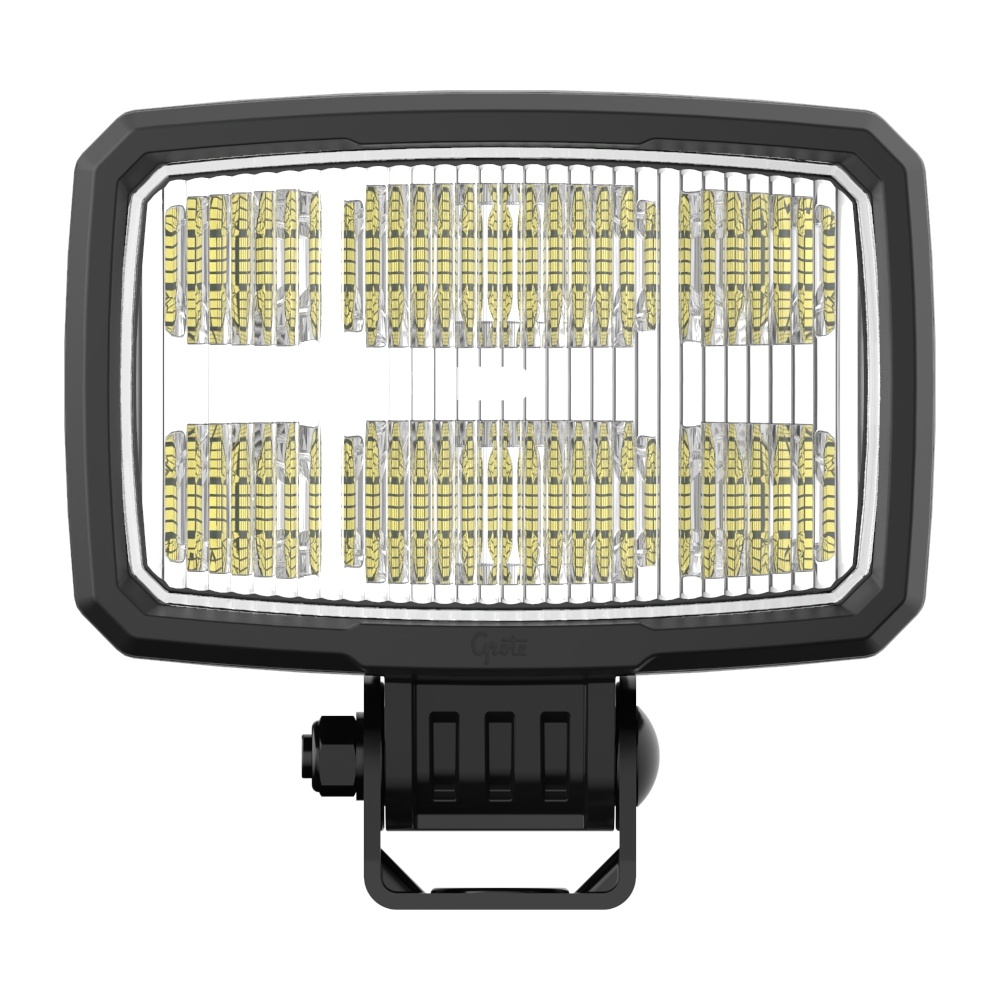

Trilliant® LMX LED Work Lights
Trilliant® LMX LED Work Lights: Robust, Efficient, Powerful. When you need a bright, dependable light for your toughest jobs, you need Trilliant® LMX. Rugged, versatile, and reliable, Trilliant® LMX can easily deliver all the light that a heavy-duty work site requires. With outputs of 5,000, 6,000, or 7,000 lumens to choose from, these are some of the most powerful lights in Grote’s lineup. A color temperature similar to daylight (5700K) means these lights are perfect for night work and will illuminate even the darkest surroundings.
Compare
0 Product Added
Technical specifications
- Operating Temperature: -40°C to +70°C / -40°F to +158°F
- VMRS: 034-006-031
- Product Line: Trilliant®
- Voltage: 9-32V
- Finish: Black Powder Coated
- Mounting Type: Pendant
- Connection Type: Deutsch DT
- Light Pattern: Close Range
- Lumens: 5000
- Amperage: 4.0A (14V), 2.0A (28V)
- Functions: R10
- Regulations: ECE
- Material: Polycarbonate Lens, Aluminum Housing
- Color: White
- Product Type: Work Light
- Watts: 55W
- Shape: Rectangular
- Warranty: 3 Years
Features & benefits
- Sealed lamp resists particle and water intrusion which meets IP69K
- Superior thermal design for a long and maintenance-free product lifetime
- Complies with ISO 14982 and EN 13309 for operation in agricultural and construction site machinery
- Best illumination for every working area: these high-output work lamps are available with three different lumen outputs ranging from 5000 lumen to 7000 lumen
