Trilliant® LMX LED Work Lights

Trilliant® LMX LED Work Lights: Robust, Efficient, Powerful. When you need a bright, dependable light for your toughest jobs, you need Trilliant® LMX. Rugged, versatile, and reliable, Trilliant® LMX can easily deliver all the light that a heavy-duty work site requires. With outputs of 5,000, 6,000, or 7,000 lumens to choose from, these are some of the most powerful lights in Grote’s lineup. A color temperature similar to daylight (5700K) means these lights are perfect for night work and will illuminate even the darkest surroundings.
Grote Loading Ajax Spinner

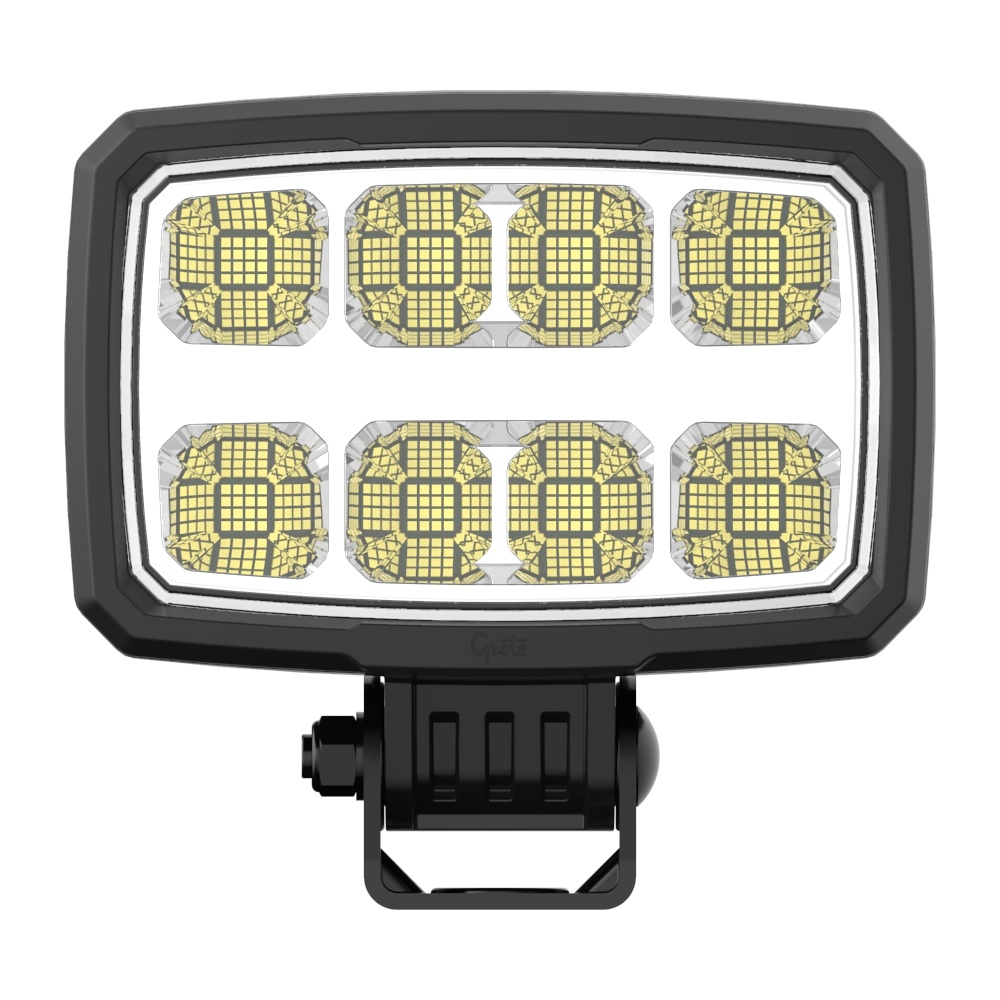

63Z01Close/Long Range Hybrid, Deutsch DT, 7000 Lumens

63Z01Close/Long Range Hybrid, Deutsch DT, 7000 Lumens

  • Close/Long Range Hybrid, Deutsch DT, 7000 Lumens 360 thumbnail
  • Close/Long Range Hybrid, Deutsch DT, 7000 Lumens thumbnail

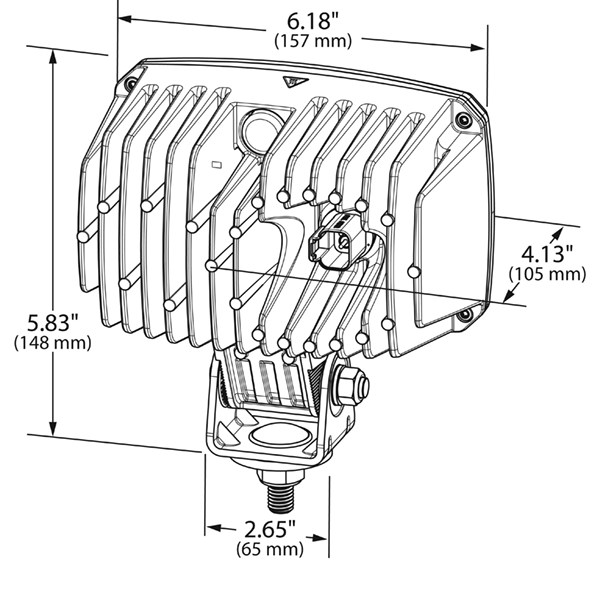

  • Grote Trilliant LMX LED Work Light 7000 Lumens Close/Long Range Hybrid Drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Operating Temperature: -40°C to +70°C / -40°F to +158°F
  • Product Line: Trilliant®
  • Voltage: 9-32V
  • Finish: Black Powder Coated
  • Mounting Type: Pendant
  • Connection Type: Deutsch DT
  • Light Pattern: Close/Long Hybrid
  • Lumens: 7000
  • Amperage: 5.7A (14V), 2.7A (28V)
  • Functions: R10
  • Material: Polycarbonate Lens, Aluminum Housing
  • Regulations: ECE
  • Product Type: Work Light
  • Watts: 80W
  • Color: White
  • Warranty: 3 Years
  • Shape: Rectangular
Features & benefits
  • Sealed lamp resists particle and water intrusion which meets IP69K
  • Superior thermal design for a long and maintenance-free product lifetime
  • Complies with ISO 14982 and EN 13309 for operation in agricultural and construction site machinery
  • Best illumination for every working area: these high-output work lamps are available with three different lumen outputs ranging from 5000 lumen to 7000 lumen
Find a Local Distributor

Replacements, Tools & Accessories

Pigtail Deutsch Connector, 12” Long, Blunt Cut Wires
68610
