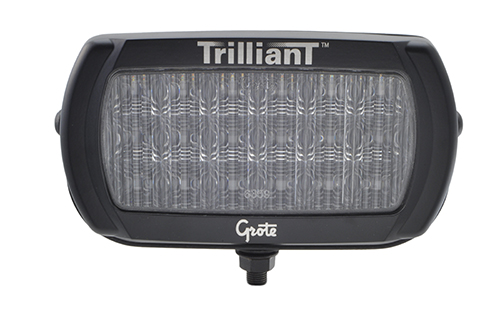

Trilliant® LED Work Lights

Grote's Trilliant® line of LED lighting provides a long-lasting, high output work light solution. Available in a variety of beam patterns, our Trilliant® lights produce a natural contrast, similar to sunlight, reducing eye fatigue when working long hours. Trilliant® Work Lights range from 1300 to 2400 lumens and most are compatible with 12 and 24V systems.
Grote Loading Ajax Spinner

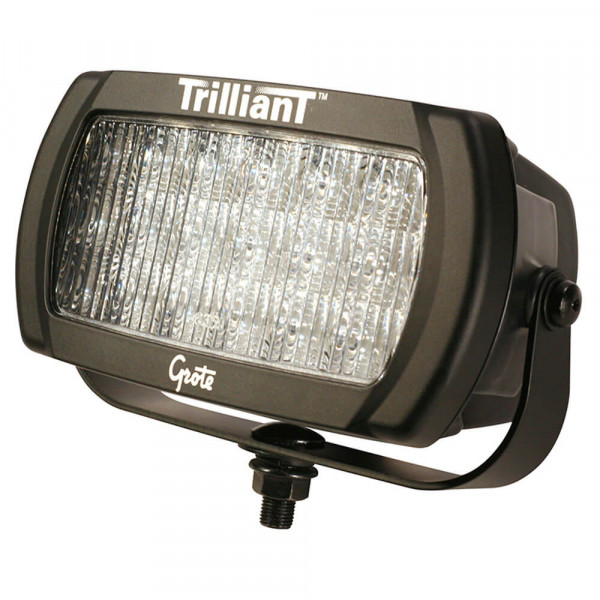

63591Trapezoid, Hardwired, 12-24V

63591Trapezoid, Hardwired, 12-24V

  • 63591 360 thumbnail
  • 63591 thumbnail

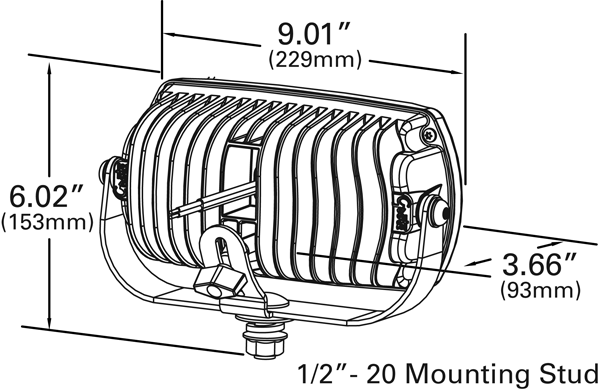

  • 635913 - Drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Ingress Protection: IP69K
  • Product Line: Trilliant®
  • Voltage: 12/24V
  • Finish: Black Powder Coated
  • Mounting Type: Stud
  • Connection Type: Blunt Cut
  • Lens Color: Clear
  • Light Pattern: Trapezoid
  • Lumens: 2050
  • Amperage: 2.1A-4.2A
  • VMRS: 034-006-031
  • Material: Polycarbonate Housing, Cast-Aluminium Housing
  • Product Type: Work Light
  • Shape: Rectangular
  • Color Temperature: 6500K
  • Warranty: 3 Years
Features & benefits
  • Available in the USA only
  • Easily mountable with a durable ½" stud mounting bracket, also features Aim-N-Go technology
  • Field tested in brutal off-road conditions
  • Long-lasting, high output LED work lamp
  • Color temperature provides a natural contrast most like sunlight, reducing eye fatigue and optimizing job performance
  • For mining, military, construction, off-road, agriculture, utility, and emergency vehicles, any application requiring a low-heat-emitting lamp that consistently delivers a bright light over time
  • Robust LED light engine, lasts longer than conventional light sources

Replacements, Tools & Accessories

Additional information

These 6" x 9" rugged surface mount, high-output lamps use Grote’s proven premier LED WhiteLight™ technology.

The light output of the Trilliant® family rivals HIDs, eclipses halogen competitors, and provides beam pattern evenness and color temperature that produces a contrast most like that of natural sunlight. Grote Trilliant® lamps give you a rugged, military grade lamp for the agriculture environment. Available in many patterns and two optic designs, the Grote Trilliant line is an excellent option for putting light where you need it.

Application photos

Grote LED Lights on an off-road jeep Grote lights on fire truck Grote Trilliant lights on firetruck Grote LED Trilliant White Light on Farm Equipment
