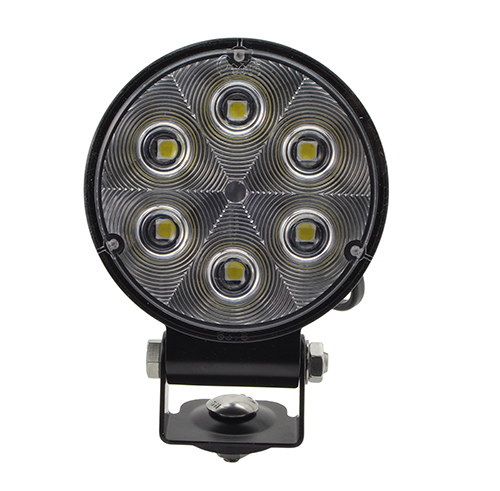

Trilliant® 36 LED Work Lights

The Trilliant® 36 LED Work Light is a straightforward replacement for incandescent and halogen PAR 36 bulbs. This light is durable and practical, lasting for years. Trilliant® 36 features Tractorplus™ and wide flood beam patterns and easily connects with Deutsch, Amp Superseal, and Spade/Screw Terminals.
Grote Loading Ajax Spinner

63861w/ Integrated Bracket & Pigtail, 12V/24V

63861w/ Integrated Bracket & Pigtail, 12V/24V

  • 63861 360 thumbnail
  • 63861 thumbnail

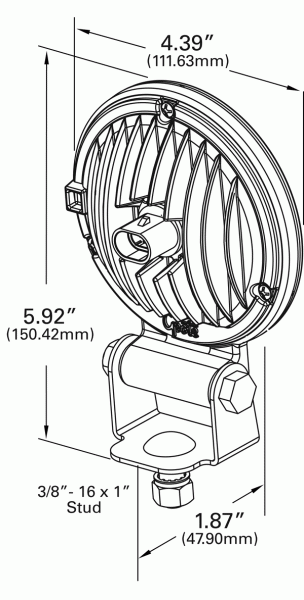

  • 63861-5 - Drawing thumbnail
  • 63861 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Clear
  • VMRS: 034-006-031
  • Ingress Protection: IPX9K
  • Product Line: Trilliant®
  • Voltage: 12/24V
  • Finish: Black Powder Coated
  • Mounting Type: Pendant
  • Connection Type: Hardshell
  • Lens Color: Clear
  • Light Pattern: TractorPlus
  • Lumens: 850
  • Shape: Round
  • Amperage: .7A-1.4A
  • Bulb: LED 10V - 30V
  • Material: Polycarbonate Lens, Aluminum Housing
  • Product Type: Work Light
  • Color Temperature: 6500K
  • Housing Color: Black
  • Warranty: 3 Years
Features & benefits
  • Bulb termination accommodates either screw or FastOn cable connections
  • Bi-Voltage, TractorPlus™ Pattern
  • UV-coated and hard-coated lens for durability

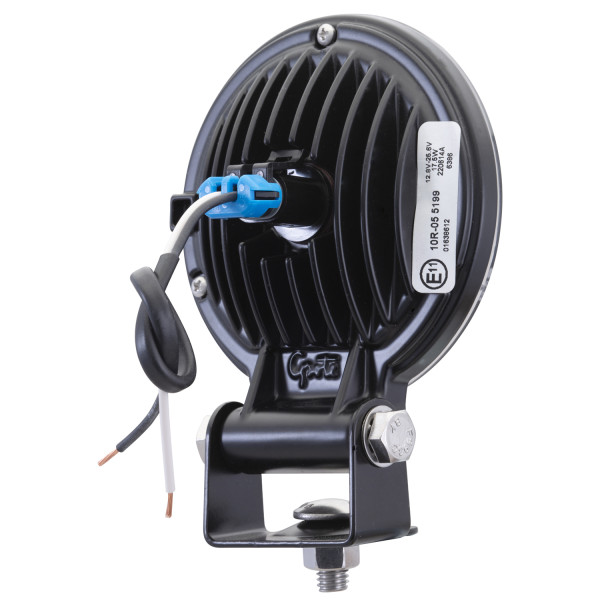

  • Includes a pigtail for hard-wired applications
  • Thermal pull-back circuit to protect the LEDs from overheating

Replacements, Tools & Accessories

Additional information

Grote T36 lamps provide the ability to quickly and inexpensively replace existing halogen bulbs with an LED replacement without changing any wiring. Just swap lamps and you are back in action. It’s just that easy.

UV- and hard-coated lens for durability. Aluminum housing with black powder coating. Encapsulant potting for total circuit-board protection against moisture and corrosion. Color temperature provides a natural contrast most like sunlight, reducing eye fatigue and optimizing job performance. Replaceable lens with three stainless steel Phillips head screws. Long-Life LEDs rated at 40,000 hours, and last 100 times longer than incandescent PAR 36 lamps.

Application photos

Grote lights on mining equipment
