90mm LED Headlamps
Grote's 90mm LED standalone High Beam and Low Beam headlamps along with the combination High Beam / Low Beam Bi-LED headlamp module are the perfect high-tech replacements for standard 90mm halogen headlamps. Designed to enhance driving safety while meeting the most demanding on and off-road requirements, Grote's new 90mm headlamp family makes upgrading to superior LED performance an easy decision.
Compare
0 Product Added
Technical specifications
- Warranty: 3 Years
- Material: Lens: Hard-coated Polycarbonate, Housing: Powder-coated Aluminum
- Lens Color: Clear
- Housing Color: Black
- Voltage: 9-32V
- Amperage: 1.13A @ 13.8V, 0.55A @ 28V
- Lumens: 830 Effective
- Color Temperature: 6100 K
- Watts: 15W
- Mounting Type: 3-point using adjustment hardware, 2- and 4-point rigid
- Connection Type: Integrated 2-pin DT connector
- Ingress Protection: IP69K
- Operating Temperature: -40°C to +85°C
- Weight: 1.2 lb (527 grams)
- Application: On-Highway, Off-Road
- Regulations: FMVSS 108 LB1V, ECE R149 Sym. (R113)
- Pack Quantity: 1
- High/low Voltage Limits: 9V/32V
- Package Type: Individual Box
- Product Type: LED Headlamp
- Heated (Y/N): N
- Moisture Resistancy: IP69K
- ROHS: Yes

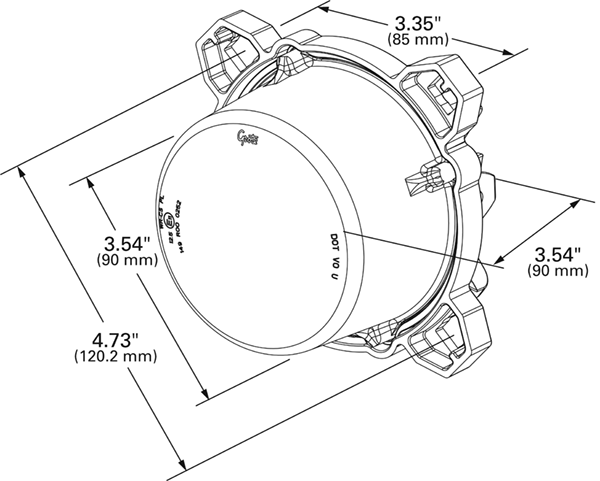

- Dimensions: 143x143x85mm (H/W/D)
- Shape: Round
Features & benefits
- 90mm diameter lens
- Mounting system with included adjustment rods designed to replace standard 90mm halogen headlamps
- Hard-coated, high-impact polycarbonate lens
- Cast-aluminum housing with sealed integrated connector
- Compact lamp profile to fit most existing applications
- 9V - 32V multi-volt design
- IP69K rated for maximum protection against dust and moisture intrusion
