LED Directional Warning Lights

LED directional warning lights provide a low profile and reliable warning light option.
Grote Loading Ajax Spinner

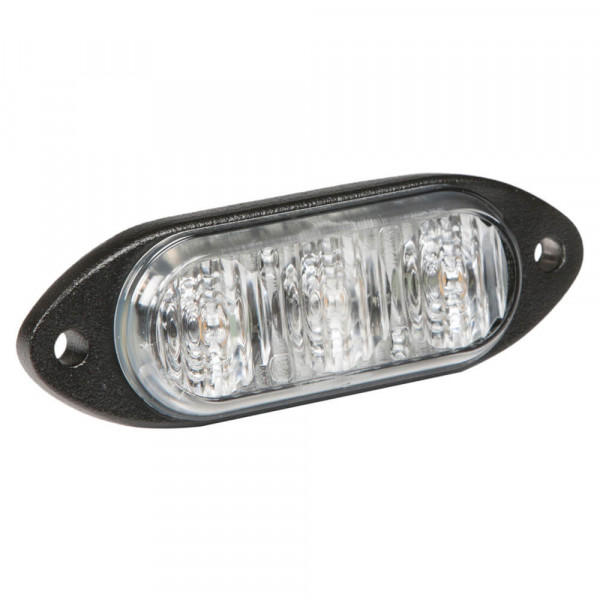

78162Surface Mount, 3-Diode, Class I, Red

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Class: Class I
  • Amperage: .3A
  • Length: 3.08"
  • Size: Low Profile
  • Height: 0.39"
  • VMRS: 034-001-021
  • Product Type: Directional Warning Lamp
  • Connection Type: Blunt Cut
  • Wire Length: 7"
  • Mounting Type: Surface
  • Standards: SAE J595
  • Lens Color: Clear
  • Shape: Rectangular
  • Gauge: 22 GA
  • Operating Temperature: -40°C to +55°C
  • Color: Red
  • Width: 1"
  • Material: Polycarbonate/Aluminum
  • Warranty: 5 Years
Features & benefits
  • S-Link™ System* synchronizing capabilities with up to six other units Allows for synchronization with other S-Link compatible products
  • Self-contained high intensity, wide angle LED module
  • Robust design, die-cast aluminum base
  • Versatile LED directional warning light can be synchronized with up to 8 interconnected modules and 25 different built-in flash patterns

Additional information


Customer reviews

  • 77463

    Hi Marc! You can find a link to the Installation Instructions under the Related information section of this page.

    Grote May 27, 2020

  • 78460

    I bought two of these to replace some someone stole. These were easy to install, have a lot of patterns to choose from and are very bright. They are solidly built and seem like they'll last a long time. I'm very happy with them.

    Mike K Jul 12, 2019

  • 77463

    Someone know how to install or connect this lights Tks

    marc l Feb 10, 2018

  • 77463

    good product when you know how to use it.

    patrick G May 23, 2016

  • 77463

    Awesome lights, super bright! Perfect size for behind the grille etc. 3 guys I know have asked me where to get them and have bought them also. I purchased mine at Parts for Trucks.

    Robert I May 15, 2016
