High Profile Class II LED Beacons

With 26 customer-selectable flash patterns, these tall Grote LED beacons are durable, lightweight, and come with a 5-year warranty.
Grote Loading Ajax Spinner

78061White

78061White

  • High Profile White LED Beacon thumbnail
  • thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate
  • Color: White
  • Lens Color: Clear
  • Voltage: 12/24V
  • Amperage: .35A
  • Class: Class II
  • Gauge: 22 GA
  • Mounting Type: Permanent
  • Connection Type: Blunt Cut
  • Operating Temperature: -40°C to +55°C
  • Height: 6.7"
  • Length: 6.4"
  • Wire Length: 6"
  • Standards: SAE J845
  • VMRS: 034-006-056
  • Product Type: Beacon
  • Style: High Profile
  • Shape: Tall Dome
  • Width: 6.4"
  • Warranty: 5 Years
Features & benefits
  • 26 customer selectable flash patterns, plus steady-on
  • Circuit board is conformal coated to protect circuitry
  • Durable, lightweight polycarbonate base, flange 3-hole permanent mount, 1" pipe mount.
Find a Local Distributor

Replacements, Tools & Accessories

Branch Guard Tall Beacon Branch Guard
98460

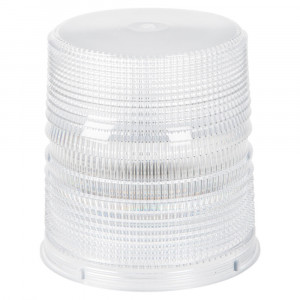

 Lens Clear LED Beacon Replacement Lens
98171
