Compact LED Beacons

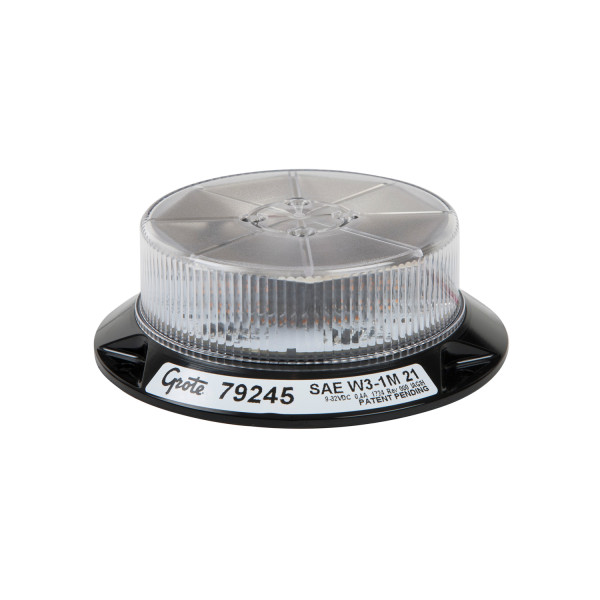

79245Permanent Mount, Class I, Blue with Clear Lens
79245Permanent Mount, Class I, Blue with Clear Lens
Compare
0 Product Added
Technical specifications
- Color: Blue
- Length: 4.40"
- Operating Temperature: -40°C (-40°F) to +55°C (+131°F)
- Voltage: 12/24V
- Gauge: 22 GA
- Height: 1.43"
- Class: Class I
- Mounting Type: Permanent
- Connection Type: Blunt Cut
- Lens Color: Clear
- Amperage: 0.4A
- Size: Compact
- Standards: SAE J845
- VMRS: 034-006-056
- Material: Polycarbonate
- Width: 4.43"
- # of Wires: 4
- Base: Polycarbonate
- Current Rating: 12/24V
- Mtg Hole: 3
- Fits: 96305
- Diodes: 16
- Wire Length: 8"
Features & benefits
- 12 customer selectable flash patterns in either of two phases, plus steady-on
- S-Link™ 2.0 System allows for flash pattern synchronization with up to ten other S-Link compatible units (for hardwire models only)
- Polycarbonate lens and base (Ultrasonic welded); Polarity protected
- Three-hole, permanent mount and magnet mount with pattern select aux. plug
