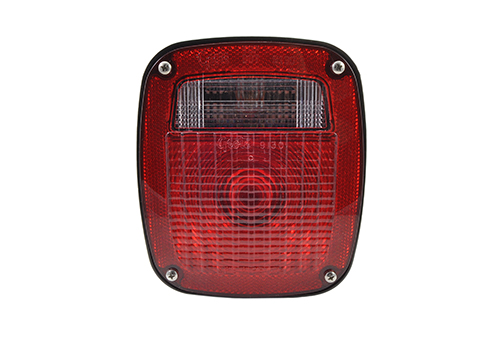

SuperNova® Three-Stud Metri-Pack® LED Stop Tail Turn Lights

Grote Loading Ajax Spinner

53640LH w/ License Window

53640LH w/ License Window

  • 53640 360 thumbnail
  • 53640 thumbnail

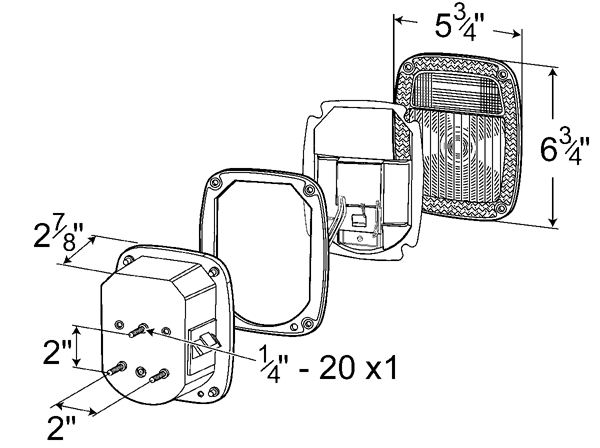

  • Grote product drawing - LH Three-Stud Metri-Pack® LED Stop Tail Turn Light with License Window thumbnail
  • 53640 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Red, White
  • Lens Color: Red/Clear
  • Housing Color: Black
  • Voltage: 12V
  • Amperage: .16A-2.1A
  • Mounting Type: Stud
  • Connection Type: Metri-Pack
  • Regulations: FMVSS 108
  • Functions: A, I, L, R(2), S, T
  • Bulb: 1156, 32 CP (L)
  • VMRS: 034-002-013
  • Product Type: Stop Tail Turn
  • Style: Metri-Pack
  • Product Line: SuperNova®
  • Shape: Square
  • Warranty: 2 Years
Features & benefits
  • Replaces GM® 15613943 and 15565731
  • Includes reflex reflector
  • SuperNova® single-LED technology in S/T/T function
  • Backup function remains incandescent
  • Potted for protection against vibration and corrosion

Replacements, Tools & Accessories

Customer reviews

  • 53630

    I have a Grote 53702 but it is not showing here in your catalog kind is this a light made for a Freightliner and wired differently?

    Newhall N Jun 25, 2019

  • 53630

    Hi Joe! First, thank you for taking the time to leave us a review. We wouldn’t trash a negative review any more than we would a positive one. Both are viewed as learning experiences for us—to find out what our customers value and ways we can improve, products and service. We realize we don’t always hit the mark the first time, and this type of feedback is vital to get us ever closer to that goal. Now...let’s see how we can correct this issue for you. Ginger from customer service will be reaching out to you and we will find your correct part – if we have one that will work – and the web / catalog will be updated to better reflect the LED / Incandescent lights on this product.

    Grote Sep 02, 2016

  • 53630

    Very disappointed to pay such a premium price for 2 Supernova LED lights only to find out the backup light is incandescent. If the engineers could not figure out how to design an LED light into that function, first it should be clearly indicated on product description, or second Grote should have installed an aftermarket LED bulb with a 1156 base mount. I'm sure the site administrator will "moderate" this review to his trash file by felt compelled to express my opinion.

    JOe P Sep 02, 2016
