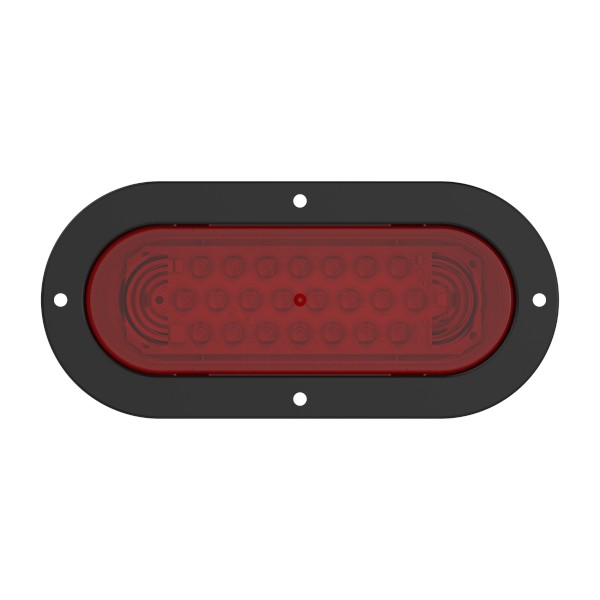

SuperNova® Oval LED Stop Tail Turn Lights
Available in both red and amber, Grote's SuperNova® Oval LED Stop Tail Turn Lights meet specifications for vertical and horizontal mounting options. These S/T/T lights contain an advanced pin-connection system that utilizes tin-plated, solid brass terminals and are potted for total circuit-board protection.
Compare
0 Product Added
Technical specifications
- Material: Acrylic Lens, ABS Housing, Polycarbonate Bracket
- Color: Red
- Lens Color: Red
- Housing Color: White
- Voltage: 12V
- Amperage: .02A-.3A
- Mounting Type: Bracket
- Connection Type: Male Pin
- Size: 6"
- Regulations: FMVSS 108
- Functions: I, P2, S, T
- VMRS: 034-002-059
- Product Type: Stop Tail Turn
- Product Line: SuperNova®
- Shape: Oval
- Warranty: 10 Years
Features & benefits
- Advanced pin-connection system uses tin-plated, solid-brass terminals
- Encapsulant potting for total circuit-board protection
- Meets specifications for vertical and horizontal mounting
- Male pin termination for maximum moisture and corrosion protection
Replacements, Tools & Accessories
Adapter Pigtail
66814
Adapter Pigtail
66830
Adapter Pigtail
67006
Adapter Pigtail
66813
Adapter Pigtail
66823
Adapter Pigtail
66836
Bracket
43362
Bracket
43952
Bracket
43220
Bracket
43223
Bracket
43222
Bracket
43100
Bracket
43723
Bracket
42152
Bracket
42153
Grommet
92420
Grommet
92720
Pigtail BU 2-Wire
66842
Pigtail BU 2-Wire
67013
Pigtail BU 2-Wire
66846
Pigtail BU 2-Wire
67016
Pigtail STT 3-Wire
66815
Pigtail STT 3-Wire
67002
Pigtail STT 3-Wire
66841
Pigtail STT 3-Wire
67005
Pigtail STT 3-Wire
66816
Pigtail STT 3-Wire
66845
