SuperNova® Oval LED Stop Tail Turn Lights

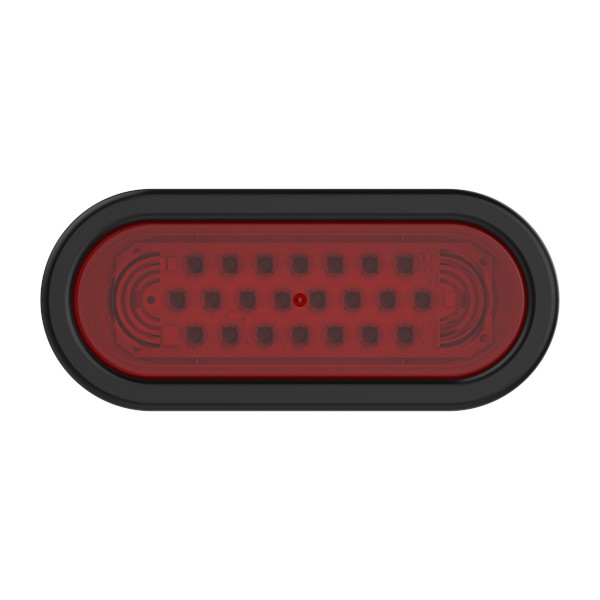

Available in both red and amber, Grote's SuperNova® Oval LED Stop Tail Turn Lights meet specifications for vertical and horizontal mounting options. These S/T/T lights contain an advanced pin-connection system that utilizes tin-plated, solid brass terminals and are potted for total circuit-board protection.
Grote Loading Ajax Spinner

53122Red Kit (53962 + 92420 + 67005)

53122Red Kit (53962 + 92420 + 67005)

  • supernova oval led stop tail turn red kit 360 thumbnail
  • supernova oval led stop tail turn red kit thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, ABS Housing, PVC Grommet
  • Color: Red
  • Lens Color: Red
  • Housing Color: White
  • Voltage: 12V
  • Amperage: .02A-.3A
  • Mounting Type: Grommet
  • Connection Type: Blunt Cut, Ring Terminal
  • Size: 6"
  • Regulations: FMVSS 108
  • Functions: I, P2, S, T
  • VMRS: 034-002-059
  • Product Type: Stop Tail Turn
  • # of Wires: 3
  • Product Line: SuperNova®
  • Shape: Oval
  • Warranty: 10 Years
Features & benefits
  • Advanced pin-connection system uses tin-plated, solid-brass terminals
  • Encapsulant potting for total circuit-board protection
  • Meets specifications for vertical and horizontal mounting
  • Male pin termination for maximum moisture and corrosion protection
