SuperNova® Oval LED Side Turn Marker Lights

Grote Loading Ajax Spinner

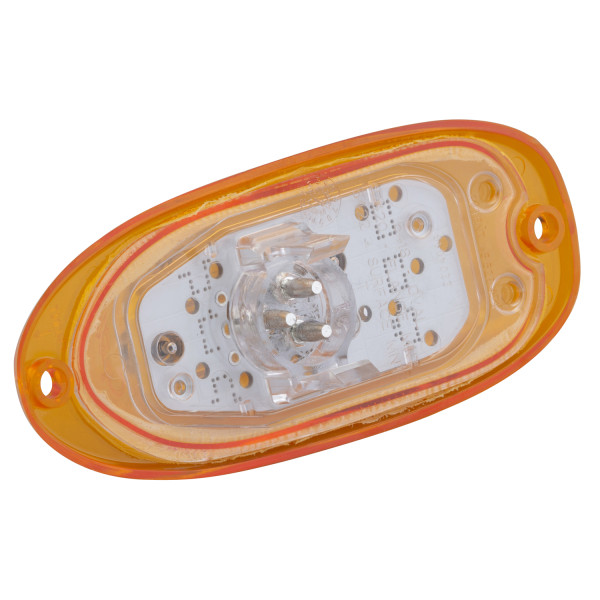

54223Surface Mount, Male Pin

54223Surface Mount, Male Pin

  • 54223 360 thumbnail
  • 54223 thumbnail

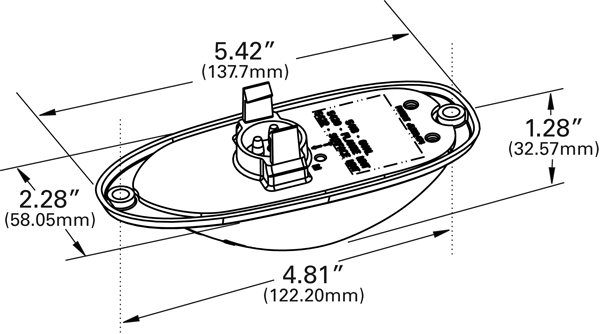

  • Grote product drawing - SuperNova® Oval LED Side Turn Marker Light thumbnail
  • 54223 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: Amber
  • Voltage: 12V
  • Amperage: .06A-.5A
  • Mounting Type: Bracket
  • Connection Type: Male Pin
  • Regulations: FMVSS 108
  • Functions: E, E2, P2
  • VMRS: 034-003-097
  • Product Type: Side Turn Marker Lamp
  • Product Line: SuperNova®
  • Shape: Oval
  • Warranty: 10 Years
Features & benefits
  • Male pin and hard shell connection options
  • Flashing turn signal is visible to driver during operation
  • 50-state-legal, meets SAE J914 E/E2 and California title 13
  • Single circuit board and single reflector component design
  • Available in recessed grommet/flange, surface and integrated flange mount versions
