SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights

Grote Loading Ajax Spinner

53552Hard Shell Connector, Grommet Mount

53552Hard Shell Connector, Grommet Mount

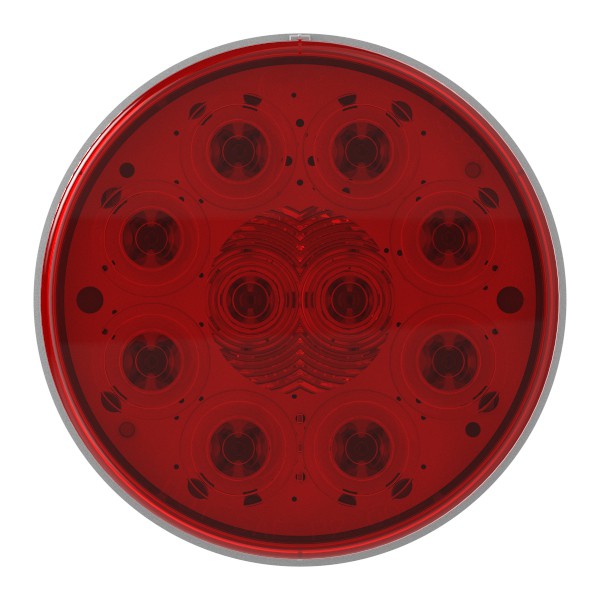

  • SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights, Hard Shell Connector, Grommet Mount 360 thumbnail
  • SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights, Hard Shell Connector, Grommet Mount thumbnail

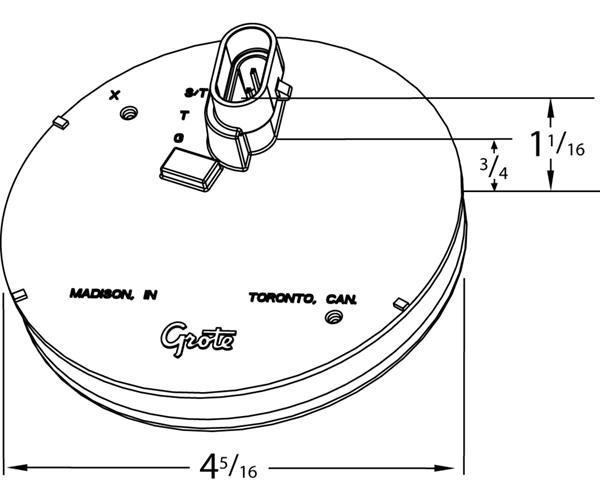

  • Grote product drawing - SuperNova® 4" 10-Diode Pattern LED Stop tail Turn Light with Grommet Mount thumbnail
  • SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights, Hard Shell Connector, Grommet Mount, Back thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Red
  • Product Line: SuperNova®
  • Voltage: 12V
  • Mounting Type: Grommet
  • Connection Type: Hard Shell
  • Lens Color: Red
  • Shape: Round
  • Amperage: .03A-.24A
  • Size: 4"
  • Functions: T, S, P2, I
  • Regulations: FMVSS 108
  • VMRS: 034-002-059
  • Material: Acrylic Lens, ABS Housing
  • Product Type: Stop Tail Turn
  • Diameter: 4"
  • Housing Color: Gray
  • Warranty: 10 Years
Features & benefits
  • Hermetic lens-to-housing seal
  • Encapsulant potting for total circuit board protection
  • Uses same UBS pigtail as male pin incandescent
  • Lens design spreads light for maximum dispersion
  • Advanced Pin Connection System uses tin-plated, solid-brass pin terminals
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 93552
93552
 Pigtail 66861
66861
 Grommet 91950
91950
 Grommet 91740
91740
 Bracket 51090
51090
 Bracket 92511
92511
 Bracket 93683
93683
 Bracket 93553
93553
 Bracket 93190
93190
 Bracket 43732
43732
 Bracket 43655
43655
 Bracket 43572
43572
 Bracket 92512
92512
 Bracket 92510
92510
 Bracket 43253
43253
 Pigtail 66862
66862
