Hi Count® LED Stop Tail Turn Lights

Grote Loading Ajax Spinner

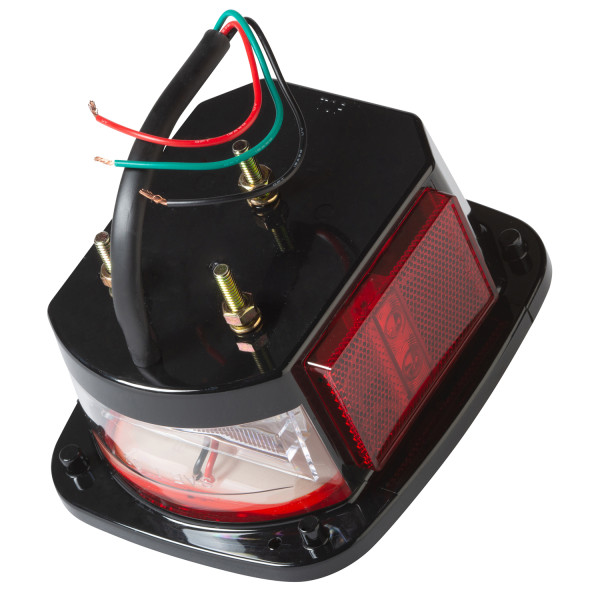

G5212LH w/ License Window & Side Marker

G5212LH w/ License Window & Side Marker

  • G5212 360 thumbnail
  • G5212 thumbnail

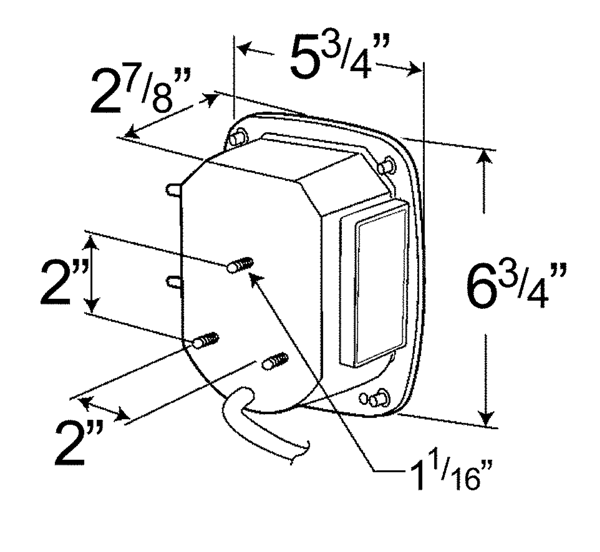

  • Grote product drawing - LH LED Stop Tail Turn Light with License Window & Side Marker thumbnail
  • G5212 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, Polycarbonate Housing
  • Color: Red
  • Lens Color: Red
  • Housing Color: Black
  • Voltage: 12V
  • Amperage: .06A-1.4A
  • Mounting Type: Bracket
  • Connection Type: Blunt Cut
  • Regulations: FMVSS 108
  • Functions: A, I, R(2), S, T
  • VMRS: 034-002-022
  • Product Type: Stop Tail Turn
  • # of Wires: 4
  • Product Line: Hi Count®
  • Shape: Square
  • Warranty: 2 Years
  • Bulk Pack #G5212-3: 1
Features & benefits
  • Includes reflex reflector
  • Directly replaces Jeep® Wrangler® lamps through 2006
  • 16 stop/tail/turn diodes, 22 backup diodes and 4 license diodes
  • Potting protects against vibration and corrosion
  • Circuit-board protection is compatible with existing flasher technology
  • All functions utilize LED technology
  • Mounting hardware and instructions for easy installation/retrofit
  • 3 stud mounting design incorporates ground function
  • Gasket between lens and housing protects against moisture intrusion
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 43842
43842
