7" LED Stop Tail Turn Lights

Grote's 7-inch LED Stop Tail Turn Lights allow you to avoid cut-outs in your vehicle with their surface mount design. Each light is constructed with a UV-protected lens and fully encapsulated potting for maximum circuit board protection.
Grote Loading Ajax Spinner

53422w/ Reflex

53422w/ Reflex

  • 53422 thumbnail

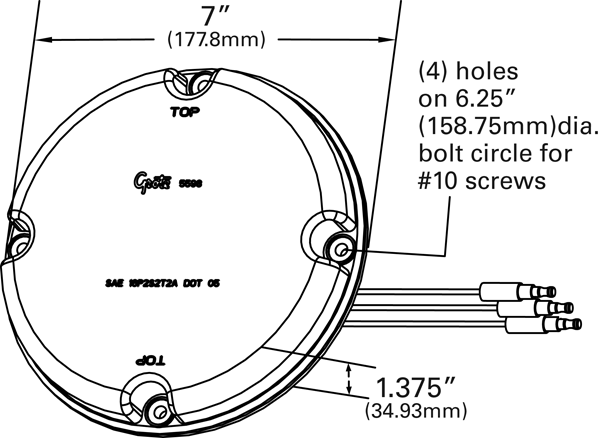

  • Grote product drawing - 7" LED Stop Tail Turn Light with Reflex thumbnail
  • 53422 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate
  • Color: Red
  • Lens Color: Red
  • Voltage: 12V
  • Amperage: .03A-.39A
  • Mounting Type: Screw
  • Connection Type: Standard .180" Male Bullet
  • Size: 7"
  • Regulations: FMVSS 108
  • Functions: A, I, P2, S, T
  • VMRS: 034-003-071
  • Diameter: 7"
  • Product Type: Stop Tail Turn
  • Shape: Round
  • Warranty: 2 Years
Features & benefits
  • Bulk Pack
  • Male .180 bullet connectors
  • UV-protected lenses, install using #10 screws
  • Surface mount installation (no cut-outs required)
  • Encapsulant potting provides protection for the circuit board

Replacements, Tools & Accessories

Customer reviews

  • 55983

    Hi Heather! You can find our warranty here. It is recommended that you read the entire warranty. The section that currently applies (as of 10/2016) to this lamp states (paraphrased) - Special LED Limited Warranty Grote LED lamps are covered by the Grote Special LED Limited Warranty and are warranted to be free from defects in workmanship and/or material only for the specified time frames listed below. Grote will replace any Grote LED lamp to the original purchaser, if the Grote LED lamp fails due to defects in workmanship and/or materials during the warranty time frame specified below: Therefore, Grote LED lamps have a Limited Warranty based on the following criteria: H – Other Grote LED lamps for FMVSS applications excluding SuperNova®, MicroNova®, WhiteLight™ and Hi Count® are covered by a two-year (2) Limited Warranty. (2 years of warranty from the manufacture date.)

    Grote Oct 20, 2016

  • 55983

    These show up quite nicely but I need to know what type of warranty is on them

    Heather M Oct 19, 2016
