6" Oval LED Sequential Arrow Side-Turn Lights

Grote's 6" Oval LED Sequential Arrow Side-Turn Lights help surrounding traffic easily identify turns with a flashing arrow light pattern.
Grote Loading Ajax Spinner

547236" Oval LED Sequential Arrow Side-Turn Light

547236" Oval LED Sequential Arrow Side-Turn Light

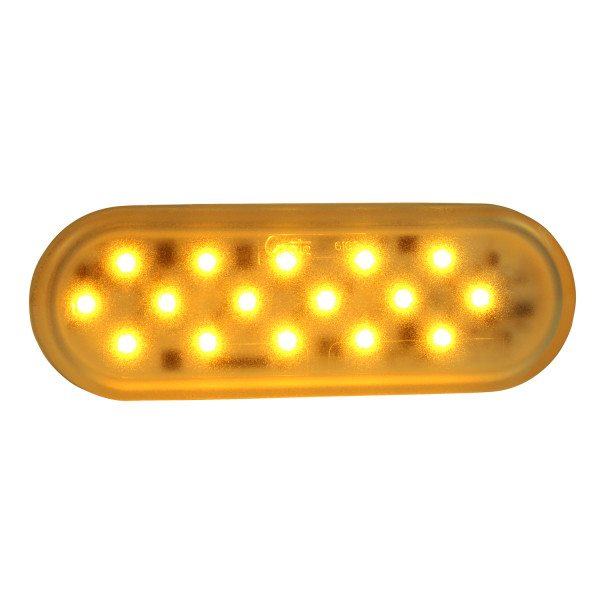

  • 54723 lit thumbnail
  • 54723 marker lit thumbnail

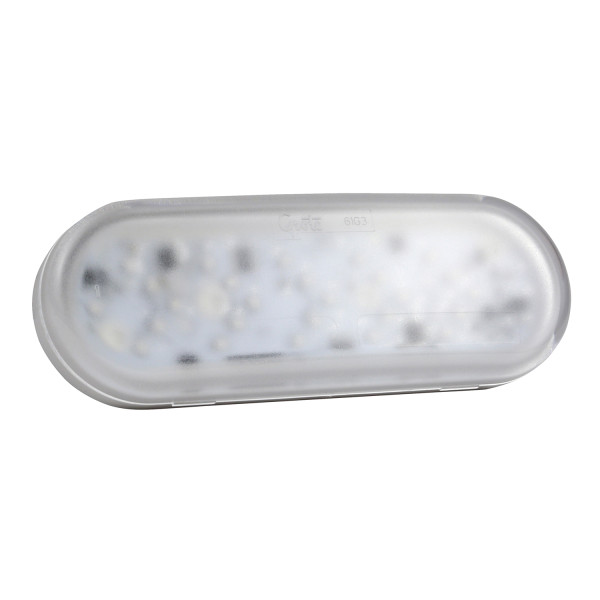

  • 54723 thumbnail
  • 54723 drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, ABS Housing
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: White
  • Voltage: 12V
  • Mounting Type: Grommet/Flange
  • Ingress Protection: Sealed Lamp
  • Standards: SAE J914 Jul_2003 (E2)
  • Regulations: FMVSS 108
  • Functions: P2
  • Pack Quantity: 1
  • Design Current Load: 9V-16V
  • Product Type: Auxiliary Lamp
  • Plug: AMP Superseal 1.5 Series
  • Current Rating: Turn .525A @ 12.8V, Marker .071A @ 12.8V

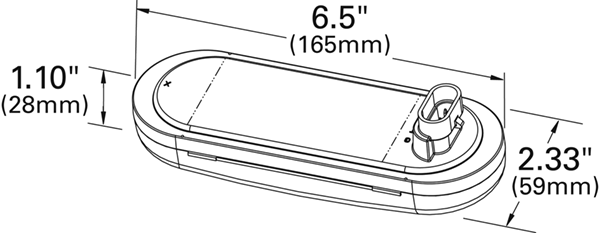

  • Dimensions: 6.5" L x 2.3" H x 1.8" W
  • Termination: AMP Superseal 1.5 Series
  • Pins: 3
  • Shape: Oval
Features & benefits
  • Sequential flashing arrow pattern highlights turns, drawing attention away from distractions
  • Auxiliary light for mid-turn and/or wide-turn indications
  • Meets legal requirements when mounted at 60 degrees
  • Industry standard design fits existing mounting grommets, brackets, and flanges
  • LED technology requires less maintenance and delivers long lamp life
