Submersible LED Trailer Lighting Kits

The Grote LED Submersible Trailer Lighting Kit combines rugged LED performance with totally submersible capabilities. This multi-function kit provides Stop Tail Turn, Side and Rear Reflectors, and License lamps. All lighting equipment needed for trailers less than 80 inches, such as 4’ trunk and 25’ trailer harness, license bracket, and mounting hardware, is included.
Grote Loading Ajax Spinner

49010LED Clearance Lamp Road Side

49010LED Clearance Lamp Road Side

  • 49010 thumbnail

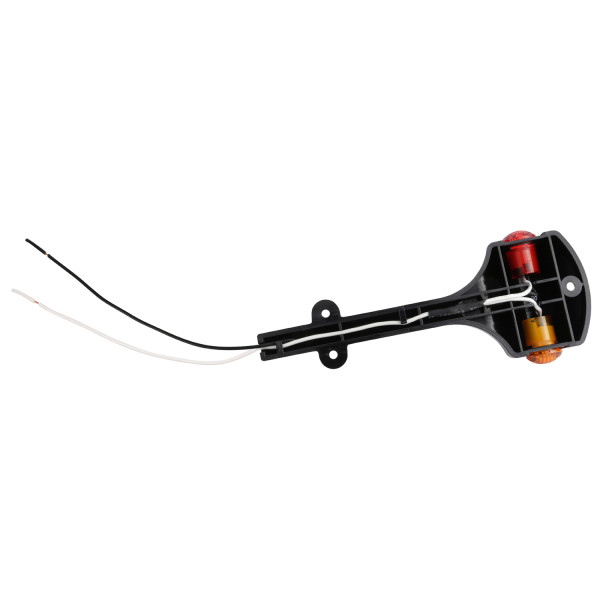

  • 49010 back thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Red/Amber
  • Voltage: 12V
  • Mounting Type: Surface
  • Connection Type: Blunt Cut
  • Lens Color: Amber/Red
  • Amperage: 0.055-0.060a
  • Functions: P2
  • Regulations: FMVSS 108
  • VMRS: 034-004-024
  • Material: Polycarbonate
  • Product Type: Clearance Lamp
  • Housing Color: Black
  • # of Wires: 2
  • Position: Road Side
  • Ingress Protection: IP67
  • Heated (Y/N): N
  • Dimensions: 6.6" x 2.8" x 0.8"
  • Pack Quantity: 1
  • Package Type: Polybag
  • Standards: SAE J592E
  • Termination: Hard Wired
  • Warranty: 2 Years
Features & benefits
  • Popular square design fits standard mounting hole configurations.
  • Multifunction lighting kit provides - Stop Tail Turn, Side and Rear Reflectors, and License lamps
  • Ideal for utility, snowmobile, camping, motorcycle, horse, and boat trailers - Submersible Kit
  • Individual replacement lamps are available for S/T/T and Clearance Marker functions
