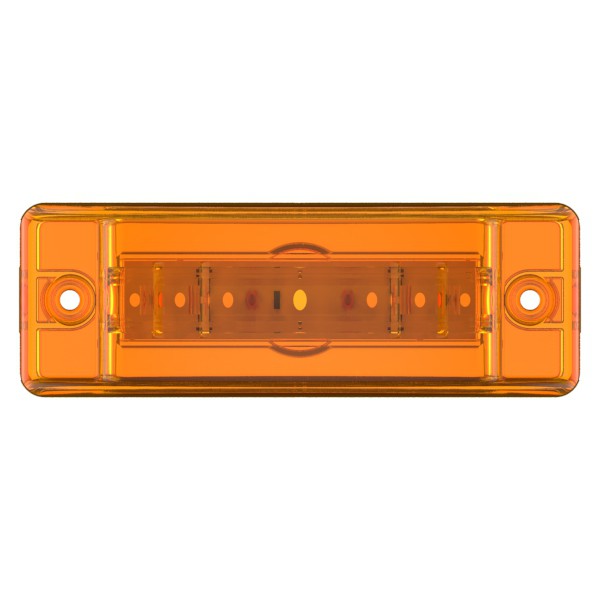

SuperNova® Sealed Turtleback® II LED Clearance Marker Lights

Grote's SuperNova® Sealed Turtleback® II LED Clearance Marker Lights have encapsulant potting for total circuit-board protection and meets PC function only when mounted at a 45° angle.
Grote Loading Ajax Spinner

49393Optic Lens, Hardwire

49393Optic Lens, Hardwire

  • supernova sealed turtleback ii led clearance marker light abs male 360 thumbnail
  • supernova sealed turtleback ii led clearance marker light abs male thumbnail

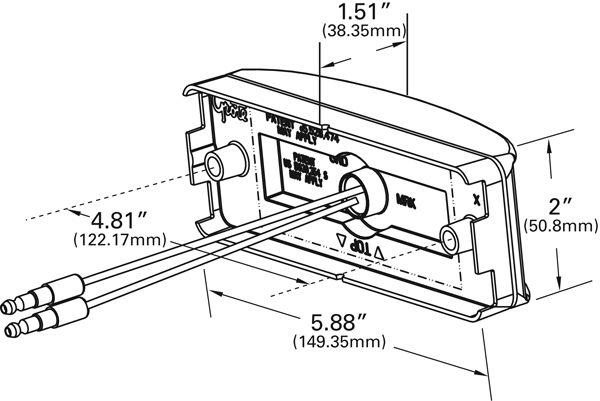

  • 49393 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: Amber
  • Amperage: .03A
  • Mounting Type: Screw
  • Connection Type: Standard .180" Male Bullet
  • Regulations: FMVSS 108
  • Functions: P2, PC
  • VMRS: 034-004-253
  • Product Type: Clearance Marker
  • Product Line: SuperNova®, Turtleback®
  • Shape: Rectangular
  • Warranty: 3 Years
Features & benefits
  • Hermetic lens-to-housing seal
  • Meets PC function only when mounted at a 45° angle
  • Not designed for vertical mount
  • Encapsulant potting for total circuit-board protection
  • Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
