SuperNova® LED Clearance Marker Lights with Built-In Reflector

Grote's SuperNova® LED Clearance Marker Light with Built-In Reflector have encapsulant potting for total circuit board protection and tin-plated, solid brass terminals, sealed to resist corrosion.
Grote Loading Ajax Spinner

47503Built-In Reflector

47503Built-In Reflector

  • supernova led clearance marker light reflector amber thumbnail

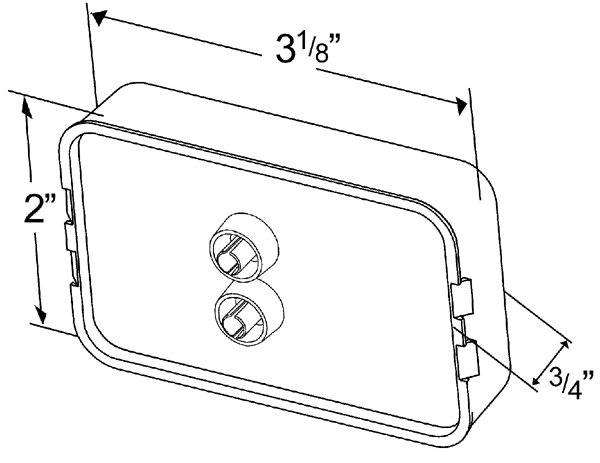

  • 47503 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: White
  • Amperage: .06A
  • Mounting Type: Grommet
  • Connection Type: PL-10
  • Regulations: FMVSS 108
  • Functions: A, P2
  • VMRS: 034-004-253
  • Product Type: Clearance Marker
  • Product Line: SuperNova®
  • Shape: Rectangular
  • Warranty: 10 Years
Features & benefits
  • Hermetic lens-to-housing seal
  • Fits popular grommets and pigtails
  • Tin-plated, solid brass terminals are sealed to housing to resist corrosion and eliminate failure-causing leak paths
  • Encapsulant potting for total circuit board protection
Find a Local Distributor

Replacements, Tools & Accessories

Grommet 93400
93400
 Grommet 93402
93402

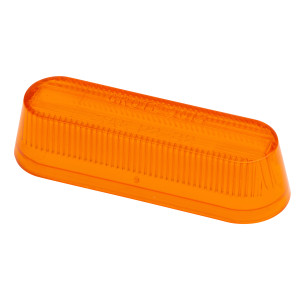

 Lens 90153
