SuperNova® 2 1/2" PC Rated, LED Clearance Marker Lights
With optic lenses to optimize photometric performance and broaden light patterns, Grote's SuperNova® 2 1/2" PC Rated, LED Clearance Marker Lights consist of hermetic lens-to-housing seal and encapsulant potting for total circuit board protection. These lights use the same UBS double-seal pigtail as incandescent for a quick retrofit, while the solid-brass, tin-plated terminals are sealed to the housing to resist corrosion and eliminate failure-causing leak paths. Available with lamp sealed to flange, for direct mounting in the side of a trailer without creating leaks in the trailer.
Compare
0 Product Added
Technical specifications
- Color: Red
- Product Line: SuperNova®
- Mounting Type: Bracket
- Connection Type: Female Pin
- Lens Color: Red
- Shape: Round
- Amperage: .06A
- Size: 2½"
- Functions: PC, P3, P2
- Regulations: FMVSS 108
- VMRS: 034-004-253
- Material: Polycarbonate Lens, Polycarbonate Housing
- Product Type: Clearance Marker
- Diameter: 2.5"
- Housing Color: Gray
- Warranty: 10 Years
Features & benefits
- Uses same UBS double seal pigtail as incandescent for a quick retrofit
- Available with lamp sealed to flange, for direct mounting in the side of a trailer without creating leaks in the trailer
- Hermetic lens to housing seal
- Encapsulant potting for total circuit board protection
- Optic lens optimizes photometric performance and broadens light pattern
- Tin-plated, solid brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
Replacements, Tools & Accessories
Accessory

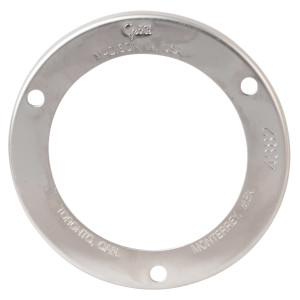

43823
Bracket
43690
Bracket
43160
Bracket
43162
Bracket
43163
Bracket
43512
Bracket
43522
Bracket
49140
Bracket
93750
Bracket
42180
Grommet
91400
Grommet
91410
Grommet
92070
Grommet
91890
Grommet
91880
Pigtail
66851
Pigtail
66850
Pigtail
67001
Pigtail
67050
Pigtail
66800
Pigtail
66840
Pigtail
66801
