SuperNova® 2 1/2" LED Clearance Marker Lights

With encapsulant potting for total circuit board protection and hermetic lens-to-housing seal, Our SuperNova® 2 1/2" LED Clearance Marker Lights use the same UBS double-seal pigtails as incandescent versions for a quick retrofit. The tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure causing leak paths.
Grote Loading Ajax Spinner

46143

46143

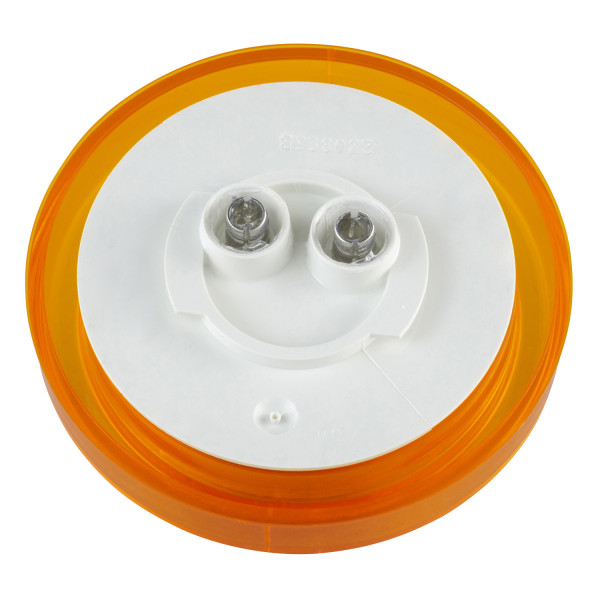

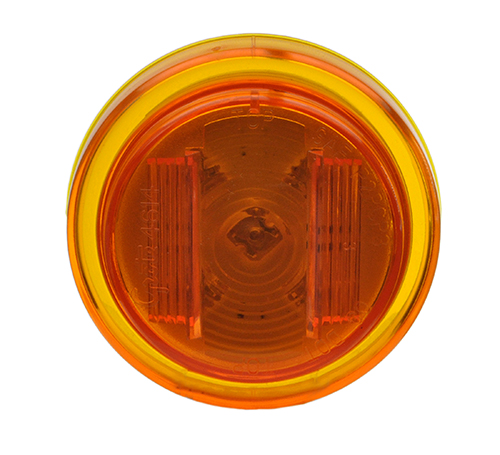

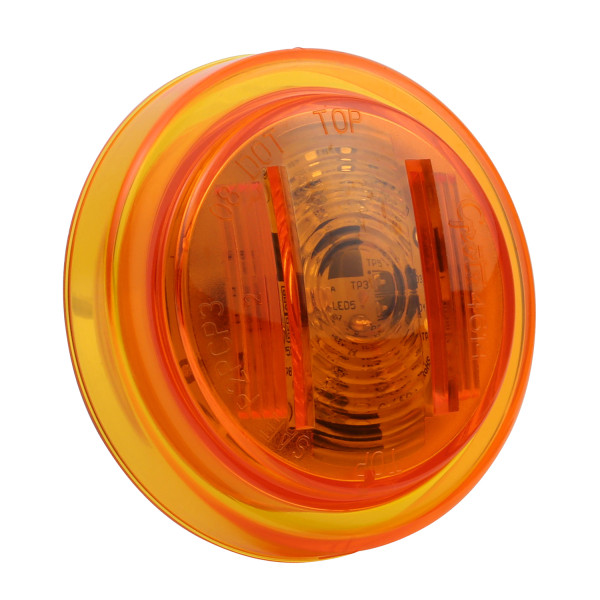

  • 46143 360 thumbnail
  • 46143 thumbnail

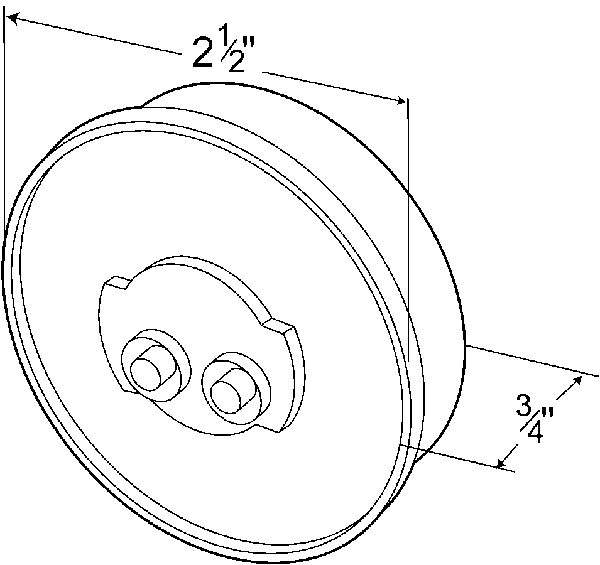

  • 46143 - drawing thumbnail
  • 46143 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Amber
  • Lens Color: Amber
  • Amperage: .06A
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Size: 2½"
  • Height: .75"
  • Regulations: FMVSS 108
  • Functions: PC
  • VMRS: 034-004-253
  • Diameter: 2.5"
  • Product Type: Clearance Marker
  • Product Line: SuperNova®
  • Shape: Round
  • Warranty: 10 Years
Features & benefits
  • Hermetic lens-to-housing seal
  • Encapsulant potting for total circuit-board protection
  • Uses the same UBS double-seal pigtail as the incandescent version for a quick retrofit
  • Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
Find a Local Distributor

Replacements, Tools & Accessories

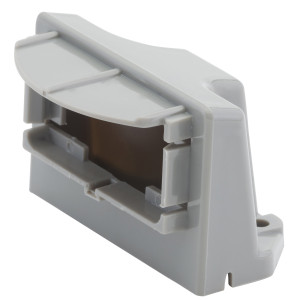

Bracket 43960
43960
 Bracket 43512
43512
 Bracket 43522
43522
 Bracket 43760
43760
 Bracket 43160
43160
 Bracket 43162
43162
 Bracket 43163
43163
 Bracket 42180
42180
 Grommet 91880
91880
 Grommet 91890
91890
 Grommet 91410
91410
 Grommet 92070
92070
 Grommet 92920
92920
 Pigtail 67001
67001
 Pigtail 66850
66850
 Pigtail 66851
66851
 Pigtail 66800
66800
 Pigtail 66801
66801
 Pigtail 66840
66840
 Pigtail 67050
67050
