Rectangular Clearance Marker Lights

Grote's Rectangular Clearance Marker Lights are rectangular with double bulbs for narrow mounting applications. Meets PC function when mounted at a 45° angle.
Grote Loading Ajax Spinner

78393ABS

78393ABS

  • 78393 360 thumbnail
  • 78393 thumbnail

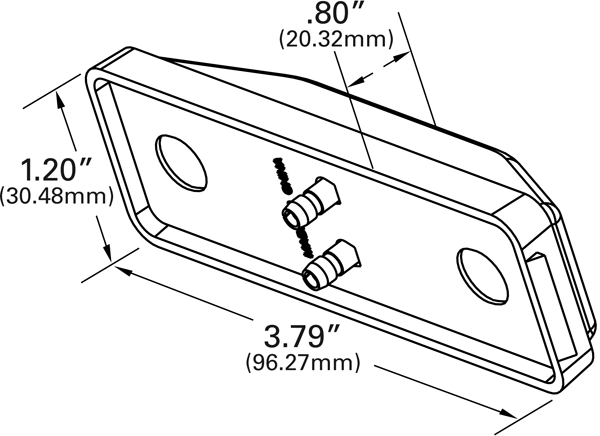

  • 78393 - drawing thumbnail
  • 78393 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Housing, Polycarbonate Lens
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: White
  • Amperage: .66A
  • Mounting Type: Narrow Rail
  • Connection Type: Male Pin
  • Regulations: FMVSS 108
  • Functions: P2, PC
  • Bulb: (2) 2 CP
  • VMRS: 034-004-021
  • Product Type: Clearance Marker
  • Shape: Rectangular
  • Warranty: 1 Year
Features & benefits
  • Hermetic lens-to-housing seal
  • Narrow mounting applications
  • Meets PC function only when mounted at a 45° angle
  • Uses double-seal UBS pigtail
  • Rectangular, double bulb lamp
Find a Local Distributor

Replacements, Tools & Accessories

Accessory 43120
43120
 Bracket 43780
43780
 Bracket 43783
43783
 Bracket 43850
43850
 Pigtail 66980
66980
 Pigtail Clearance Marker Pigtail, 8" Long, Ground Return
66982
 Pigtail 66981
66981
