MicroNova® Dot LED Clearance Marker Lights

The MicroNova® Dot provides a bright pinpoint of light exactly where it is needed. The mounting bracket has two drain holes on either side of the lamp, so water will drain away from the lamp itself. This new design is thinner and more compact, yet it uses the same vehicle hole pattern, meaning existing vehicles can be retrofitted easily. The mounting bracket's durable polycarbonate material ensures years of effective use, and includes slotted mounting holes for even greater mounting flexibility.
Grote Loading Ajax Spinner

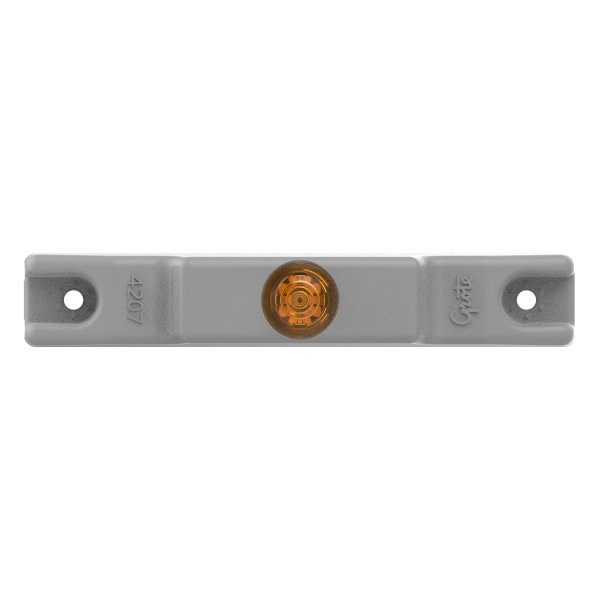

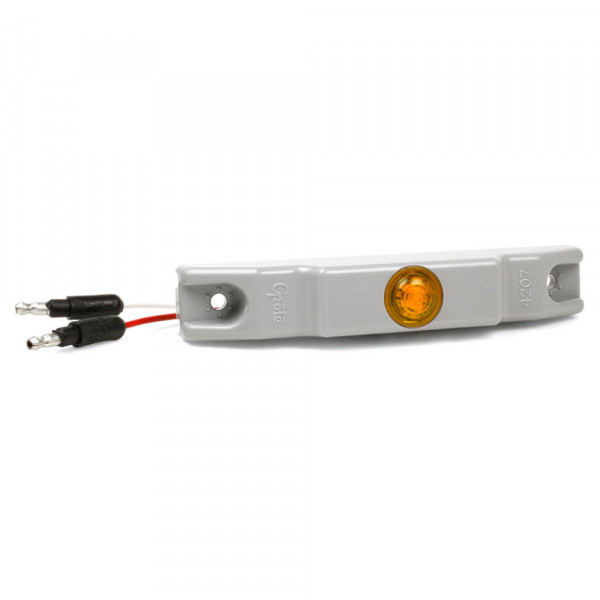

49453Amber, with Bracket

49453Amber, with Bracket

  • Amber LED Clearance Marker Light 360 thumbnail
  • Amber LED Clearance Marker Light thumbnail

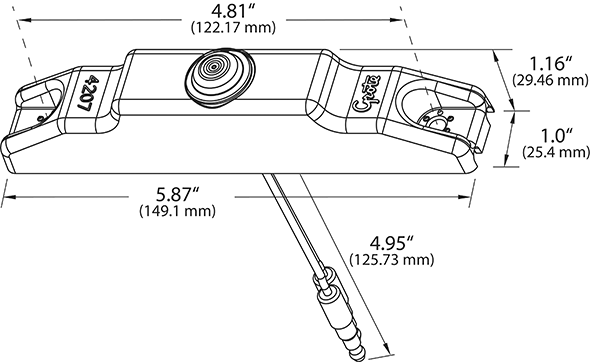

  • Drawing of LED Clearance Marker Light thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Bracket, Acrylic Lens
  • Color: Amber
  • Lens Color: Amber
  • Amperage: .05A
  • Mounting Type: Bracket
  • Connection Type: Standard .180" Male Bullet
  • Regulations: FMVSS 108
  • Functions: PC
  • Mtg Hole: .75"
  • VMRS: 034-004-253
  • Product Type: Clearance Marker
  • Product Line: MicroNova®
  • Shape: Rectangular
  • Warranty: 3 Years
Features & benefits
  • Available in PC and P2 versions with .180 bullet or Deutsch® connectors
  • Sleek aerodynamic styling extends less than 3/8" from mounted surface
  • No fasteners required
Find a Local Distributor

Replacements, Tools & Accessories

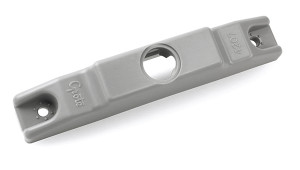

Bracket Surface Mount Bracket For MicroNova® Or MicroNova® Dot, Narrow Surface Mount, Gray
42070
 Lamp MicroNova® Dot Amber LED Clearance Marker Light With Grommet.
49333
