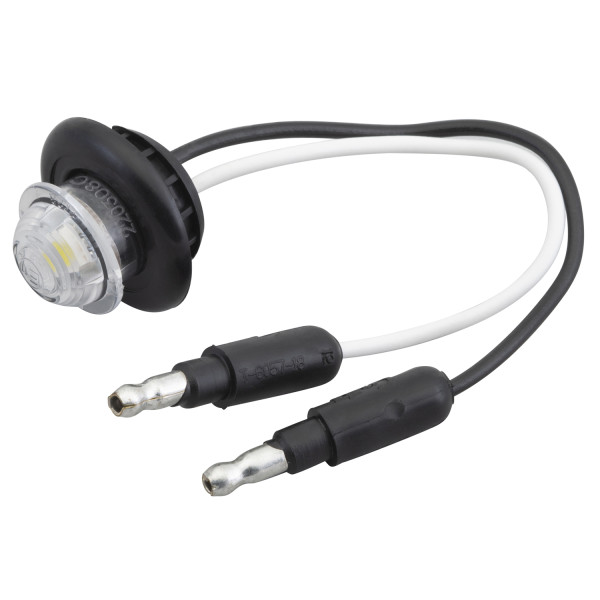

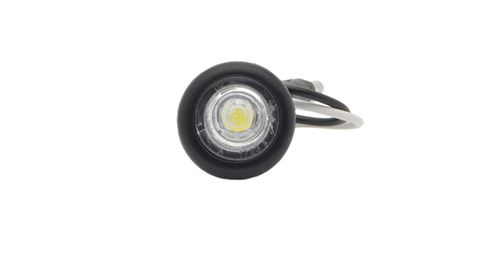

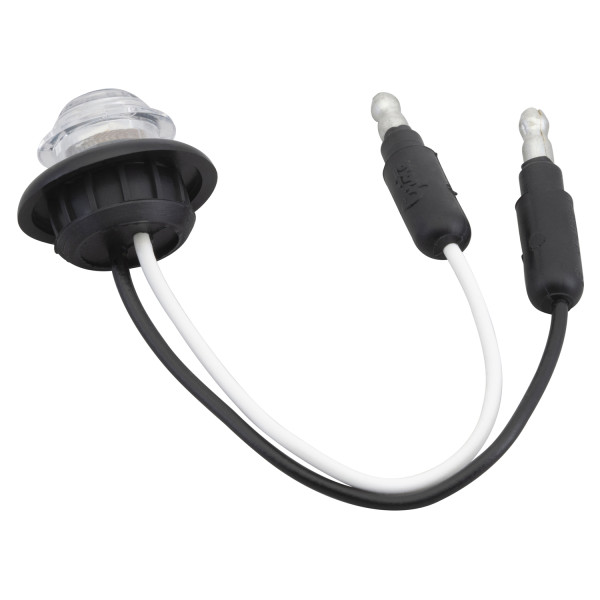

MicroNova® Dot LED Clearance Marker Lights

The MicroNova® Dot provides a bright pinpoint of light exactly where it is needed. The mounting bracket has two drain holes on either side of the lamp, so water will drain away from the lamp itself. This new design is thinner and more compact, yet it uses the same vehicle hole pattern, meaning existing vehicles can be retrofitted easily. The mounting bracket's durable polycarbonate material ensures years of effective use, and includes slotted mounting holes for even greater mounting flexibility.
Grote Loading Ajax Spinner

49341White, with Grommet

49341White, with Grommet

  • 49341 360 thumbnail
  • 49341 thumbnail

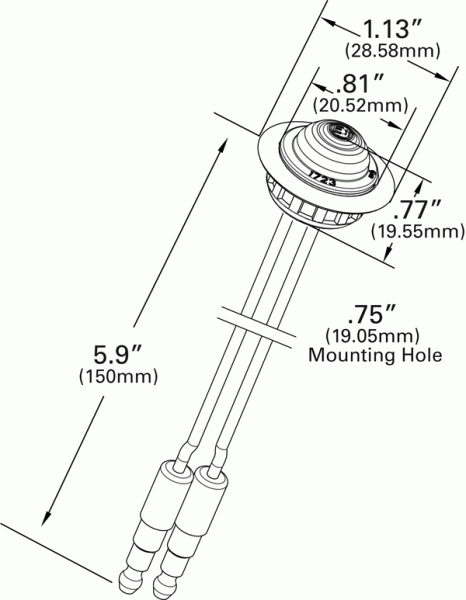

  • 49341 - Drawing thumbnail
  • 49341 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: PVC Grommet, Acrylic Lens
  • Color: White
  • Lens Color: Clear
  • Amperage: .05A
  • Mounting Type: Grommet
  • Connection Type: Standard .180" Male Bullet
  • Size: 1"
  • Regulations: ECE
  • Functions: R7
  • Mtg Hole: .75"
  • VMRS: 034-004-253
  • Product Type: Clearance Marker
  • Product Line: MicroNova®
  • Shape: Round
  • Warranty: 3 Years
Features & benefits
  • Available in PC and P2 versions with .180 bullet or Deutsch® connectors
  • Sleek aerodynamic styling extends less than 3/8" from mounted surface
  • No fasteners required
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 42110
42110
 Bracket 94350
94350
 Flange 42063
42063

Additional information


Application photos

Grote MicroNova Dot LED Lights on dashboard Grote MicroNova Dot LED lights in bus Grote Micronova Dot LED lights on ATV Grote MicroNova Dot LED lights on switchboard Grote MicroNova Dot LED lights on boats
