Hi Count® 2 1/2" LED Clearance Marker Lights

Grote's Hi Count® 2 1/2" LED Clearance Marker Lights are designed to fit most popular mounts and are twist-on mounted for easy installation.
Grote Loading Ajax Spinner

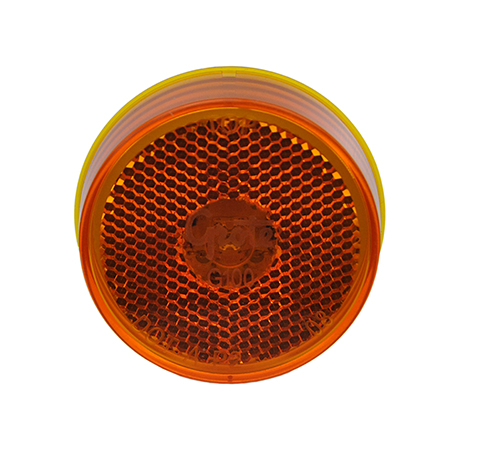

G1003Built-in Reflector

G1003Built-in Reflector

  • G1003 360 thumbnail
  • G1003 thumbnail

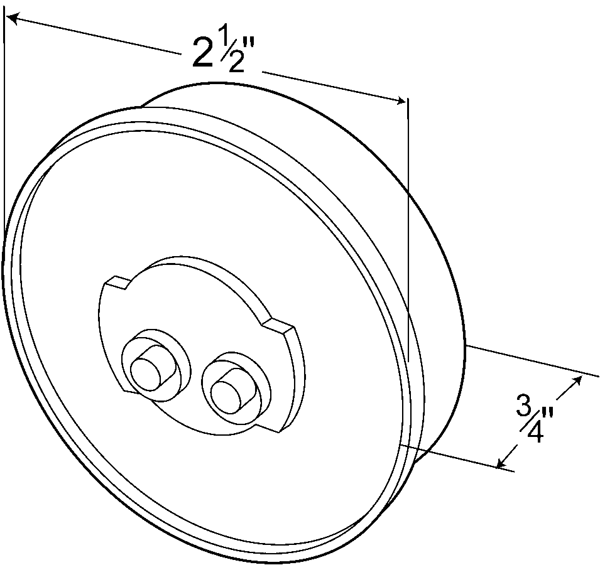

  • g1003 - drawing thumbnail
  • G1003 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Amber
  • Product Line: Hi Count®
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Lens Color: Amber
  • Shape: Round
  • Amperage: .04A
  • Size: 2½"
  • Functions: P2, A
  • Regulations: FMVSS 108
  • VMRS: 034-004-253
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Product Type: Clearance Marker
  • Diameter: 2.5"
  • Housing Color: White
  • Warranty: 2 Years
  • Bulk Pack #G1003-3: 48
Features & benefits
  • Hermetic lens-to-housing seal
  • Uses the same UBS double-seal pigtail as the incandescent version for a quick retrofit
  • Twist-on mounting for easy installation
  • Fits all popular mountings and grommets
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 43690
43690
 Bracket 43160
43160
 Bracket 43162
43162
 Bracket 43163
43163
 Bracket 43512
43512
 Bracket 43522
43522

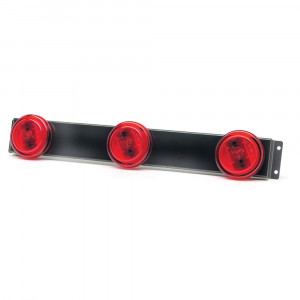

 Bracket Bar Lamp Bracket For 2" & 2 1/2" Round Lights, Black
