3" Clearance Marker Lights

Grote's rectangular 3" Clearance Marker Lights fit narrow applications and meet PC function when mounted at a 45° angle.
Grote Loading Ajax Spinner

46423-5Kit (43980 + 67050)

46423-5Kit (43980 + 67050)

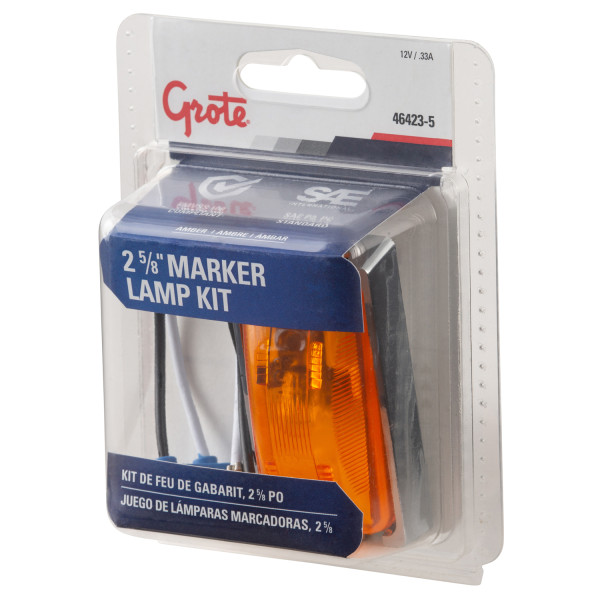

  • 3 clearance marker light amber thumbnail

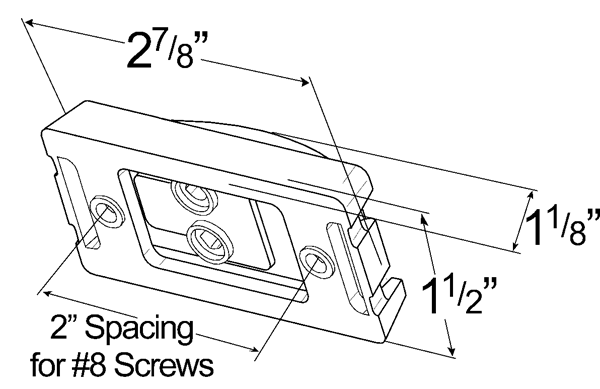

  • 46423 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: White
  • Amperage: .33A
  • Mounting Type: Bracket
  • Connection Type: Female Pin
  • Size: 3"
  • Regulations: FMVSS 108
  • Functions: P2, PC
  • VMRS: 034-004-021
  • Product Type: Clearance Marker
  • Shape: Rectangular
  • Warranty: 1 Year
Features & benefits
  • **Available in USA only
  • Uses double-seal UBS pigtail
  • Meets PC function only when mounted at a 45° angle
  • Hermetic lens-to-housing seal
  • Rectangular shape fits narrow applications
  • 12-volt version features a 12,000+ hour bulb
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 43370
43370
 Pigtail 66840
66840
 Pigtail 66801
66801
 Pigtail 66800
66800
 Pigtail 67001
67001
 Pigtail 66850
66850
 Pigtail 66851
66851
 Grommet 91380
91380
 Bracket 43380
43380
 Bracket Header-Mount Bracket For Small Rectangular Lights, White
42141
 Bracket 43980
43980
 Bracket Bracket For Small Rectangular Lights, Gray Kit
43970
 Pigtail 67050
67050
