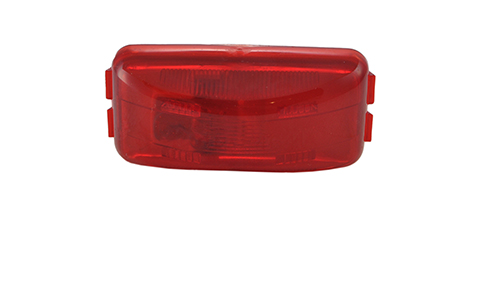

3" Clearance Marker Lights

Grote's rectangular 3" Clearance Marker Lights fit narrow applications and meet PC function when mounted at a 45° angle.
Grote Loading Ajax Spinner

46412

46412

  • 46412 360 thumbnail
  • 46412 thumbnail

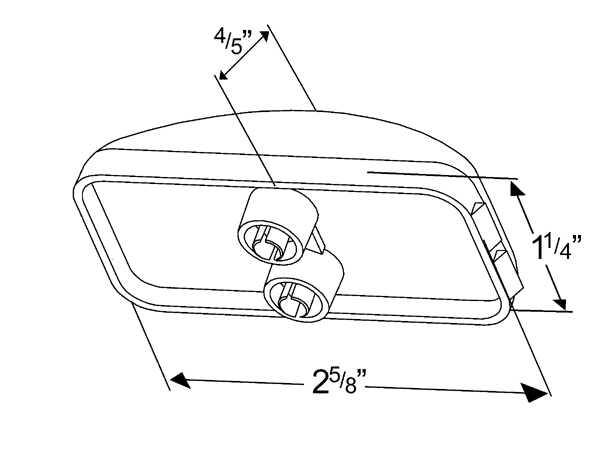

  • 46412 - drawing thumbnail
  • 46412 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

LED Icon

47082
3" SuperNova® LED Clearance Marker Light

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Red
  • Lens Color: Red
  • Amperage: .33A
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Size: 3"
  • Regulations: FMVSS 108
  • Functions: P2, PC
  • Bulb: 2 CP
  • VMRS: 034-004-021
  • Product Type: Clearance Marker
  • Shape: Rectangular
  • Warranty: 1 Year
  • Bulk Pack #46412-3: 50
Features & benefits
  • Uses double-seal UBS pigtail
  • Meets PC function only when mounted at a 45° angle
  • Hermetic lens-to-housing seal
  • Rectangular shape fits narrow applications
  • 12-volt version features a 12,000+ hour bulb
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 43370
43370
 Bracket Bracket For Small Rectangular Lights, Gray Kit
43970
 Bracket 43980
43980
 Bracket Header-Mount Bracket For Small Rectangular Lights, White
42141
 Bracket 43380
43380
 Grommet 91380
91380

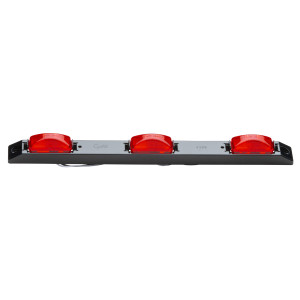

 Light Bar 49172
