Hi Count® Oval LED Stop Tail Turn Lights

Grote's Hi Count® Oval LED Stop Tail Turn Lights have lower amp draw LEDs allowing for use of more lamps without draining vehicle power.
Grote Loading Ajax Spinner

G6012Red w/ Clear Lens

G6012Red w/ Clear Lens

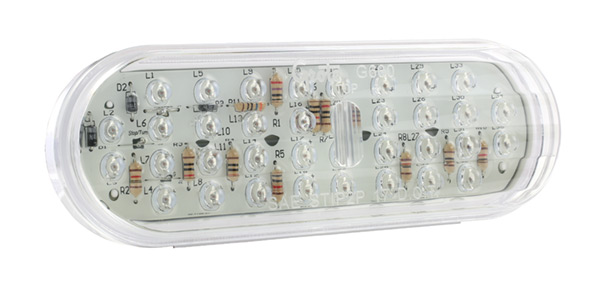

  • G6012 unlit thumbnail

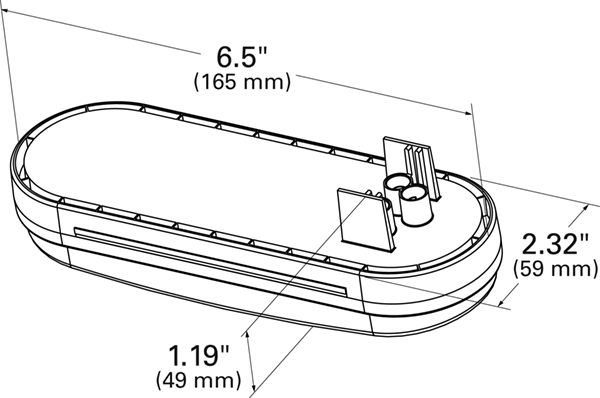

  • G6012 Line Drawing thumbnail
  • G6012 thumbnail
  • G6012 back thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Red
  • Lens Color: Red
  • Housing Color: White
  • Voltage: 12V
  • Amperage: .05A-.4A
  • Mounting Type: Bracket
  • Connection Type: Female Pin
  • Size: 6"
  • Regulations: FMVSS 108
  • Functions: I6, P2, S2, T2
  • VMRS: 034-002-059
  • Product Type: Stop Tail Turn
  • Product Line: Hi Count®
  • Shape: Oval
  • Warranty: 2 Years
Features & benefits
  • Fits same connections as female incandescent lamps
  • LEDs provide greater stopping distance for trailing vehicles
  • Female pin connection accepts all popular plug-in connectors
  • Lower amp draw of LEDs allows for use of more lamps without draining vehicle power
