4" Hi Count® Double-Face LED Lights

Grote Loading Ajax Spinner

G5300

G5300

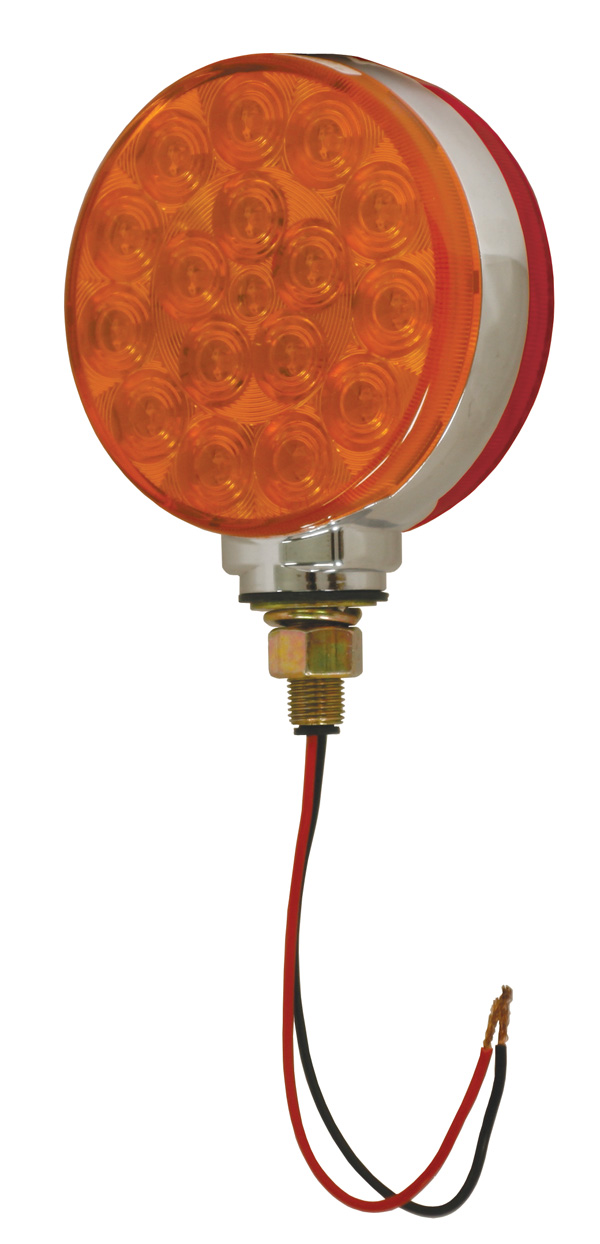

  • G5300 thumbnail

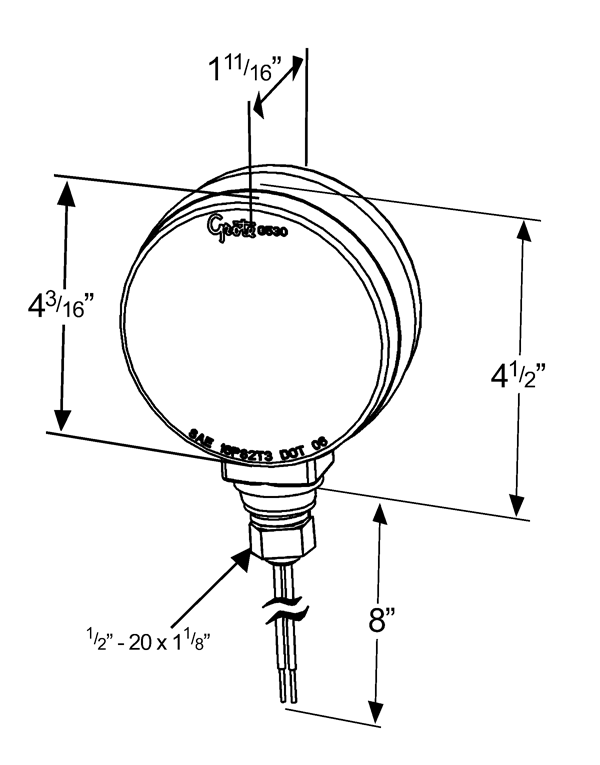

  • Grote product drawing - 4" hi count double face led light thumbnail
  • G5300 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, Die Cast Zinc Housing
  • Finish: Chrome
  • Color: Red, Amber
  • Lens Color: Red/Yellow
  • Housing Color: Chrome
  • Voltage: 12V
  • Amperage: .04A-.77A
  • Mounting Type: Pedestal
  • Connection Type: Blunt Cut
  • Size: 4"
  • Regulations: FMVSS 108
  • Functions: I, T
  • VMRS: 034-002-013
  • Diameter: 4"
  • Product Type: Lamp
  • Product Line: Hi Count®
  • Shape: Round
  • Warranty: 2 Years
  • Bulk Pack #G5300-3: 50
Features & benefits
  • Attractive, multiple-diode design
  • Bulk Pack
  • Two-wire double-contact installation
  • Heavy-duty housing with hard-wired connection for variable wiring options
