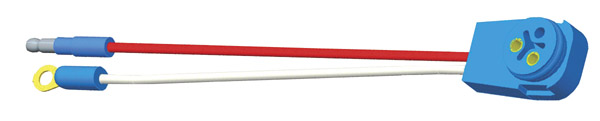

Stop Tail Turn Two-Wire 90° Plug-In Pigtails for Male Pin Lights

Grote Loading Ajax Spinner

6684610" Long

6684610" Long

  • 66846 thumbnail
  • 66846 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Side Two: 90 degree Male Pin
  • Wire Material: GPT
  • Connector Quantity: 4
  • Connector Side One: Slim-Line .180" Male Bullet/Ring terminal
  • Wire Gauge: 14 GA
  • Connection Type: Slim-Line .180" Male Bullet/Ring terminal, Male Pin
  • Length: 10"
  • Wire Length: 9"
  • Fits: 4" Round and Oval STT Lamps
  • Pack Quantity: Individual (12 per carton)
  • VMRS: 034-002-031
  • Diameter: 4"
  • Product Type: Stop Tail Turn
  • # of Wires: 2
  • Style: Pigtail
  • Shape: Round
  • Warranty: 1 Year
Features & benefits
  • Single function, Slim-Line .180 male
  • Single function, blunt-cut wires
  • O-ring seal resists moisture and corrosion
  • 90° plug for reduced clearance applications
  • Grease grooves for additional sealing protection
  • Factory-molded plugs for use with quality ULTRA-BLUE-SEAL® trailer wiring system
