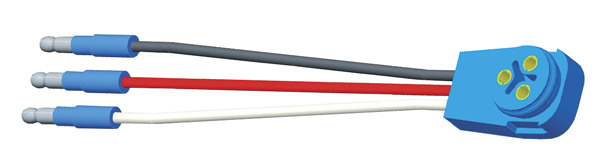

Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Male Pin Lights

Grote Loading Ajax Spinner

668166" Long

668166" Long

  • 66816 thumbnail

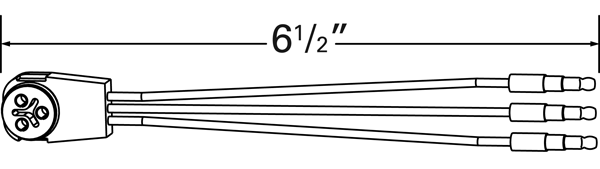

  • 66816 - drawing thumbnail
  • 66816 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Side Two: 90 degree Male Pin
  • Wire Material: GPT
  • Connector Quantity: 4
  • Connector Side One: Slim-Line .180" Male Bullet
  • Gauge: 14-3 GA
  • Wire Gauge: 14 GA
  • Connection Type: Slim-Line .180" Male Bullet, 90° Male Pin
  • Length: 6"
  • Wire Length: 5"
  • Fits: 4" Round and Oval STT Lamps
  • Pack Quantity: Individual (12 per carton)
  • VMRS: 034-002-031
  • Product Type: Stop Tail Turn
  • # of Wires: 3
  • Style: Pigtail
  • Warranty: 1 Year
Features & benefits
  • Slim-Line .180 Male
  • Blunt Cut Wires
  • Dual function for S/T/T lamps
  • Quality ULTRA-BLUE-SEAL® construction
  • O-ring seal resists moisture and corrosion
  • 90º plug for reduced clearance applications
  • Grease grooves for additional sealing protection
