ULTRA-BLUE-SEAL® Main Harness ABS Adapters

Grote Loading Ajax Spinner

6670512" Long

6670512" Long

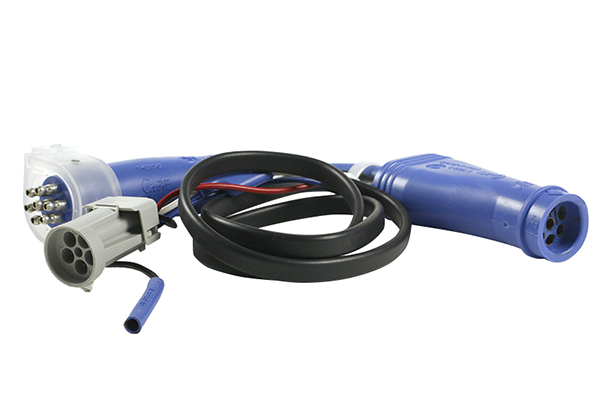

  • 66705 thumbnail

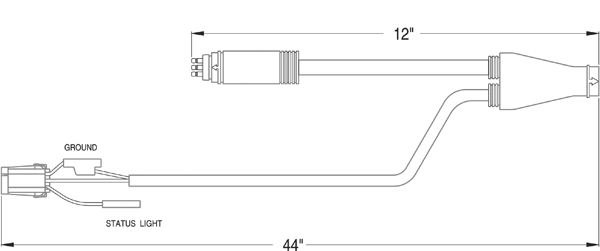

  • 66705 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Side One: UBS 7-Way Male
  • Connector Side Two: UBS 7-Way Female/Packard 5-Way Connector
  • Wire Material: GPT
  • Connector Quantity: 3
  • Gauge: 1/10 GA, 6/12 GA
  • Wire Gauge: 1-10 GA, 6-12 GA
  • Connection Type: UBS 7-Way Female/Packard 5-Way Connector, UBS 7-Way Male
  • Length: 1' (12")
  • Wire Length: 11"
  • Pack Quantity: Individual
  • VMRS: 034-004-023
  • Product Type: Harness
  • # of Wires: 7
  • Style: Main Harness
  • Product Line: Ultra-Blue-Seal®
  • Warranty: 1 Year
Features & benefits
  • Junction between main harness and real sill harness
  • Provides sealed plug-in connection and a drop-out extension for ABS
