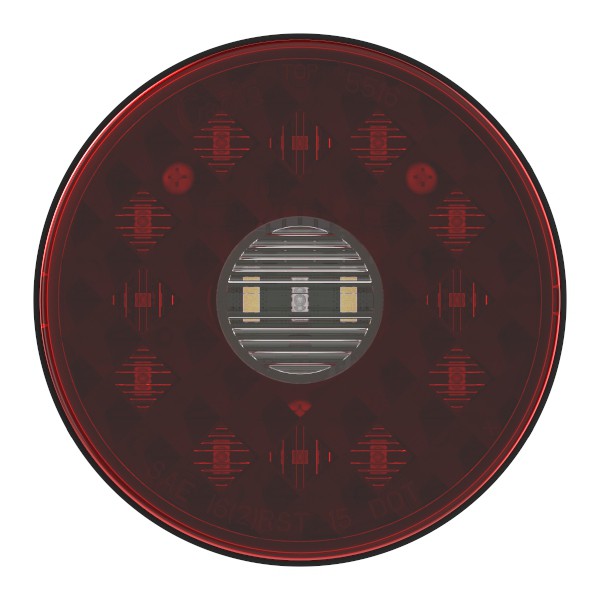

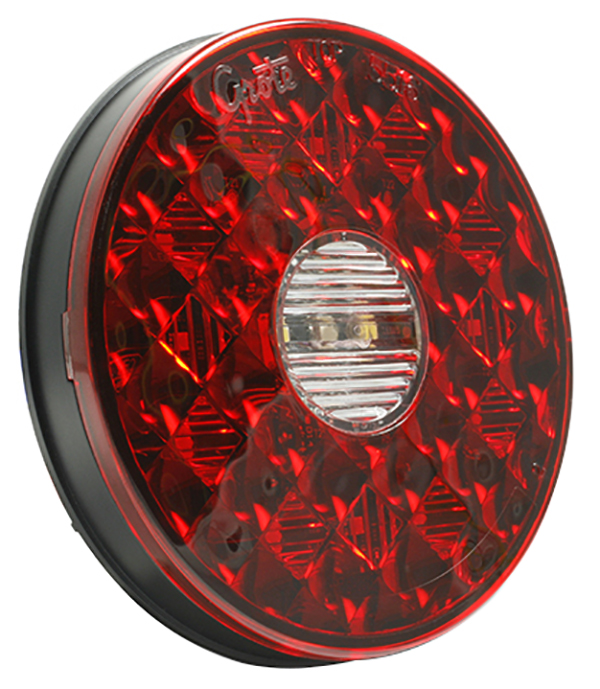

4" Round LED Stop Tail Turn Lights with Integrated Backup
As the newest of its kind, the patented design of the Grote 4” Round LED S/T/T with Integrated Backup Lamp integrates the functions of Stop, Tail, Turn and Back-up lights into a single, industry-standard size combination light.
Compare
0 Product Added
Technical specifications
- Material: Polycarbonate Lens, PC/ABS Housing
- Color: Red, Clear
- Lens Color: Red/Clear
- Housing Color: Black
- Voltage: 12V
- Amperage: .08A-.31A
- Mounting Type: Grommet, Bracket
- Connection Type: Hardshell
- Size: 4"
- Regulations: FMVSS 108
- Functions: I, S, T, R(2)
- VMRS: 034-002-059
- Diameter: 4"
- Product Type: Stop Tail Turn
- Shape: Round
- Warranty: 10 Years
Features & benefits
- Innovative patented design combines all Stop Tail Turn and Backup functions into one industry-standard size lamp.
- High Compliance design using dedicated LEDs for Stop and Tail functions
- Assembled in Stainless Steel Flange.
- A new robust design for consistent compliance utilizing dedicated LEDs for Stop and Tail
- Matches the design of the 55162 Stop Tail Turn with Back-up
- Provides high level electrical protection for: reverse voltage, over voltage, electrical transients, and overheating
- Robust laser weld construction
- Designed to meet electrical specifications of all major Class 8 truck manufacturers
- Provides high level electrical protection for: reverse voltage, over voltage, electrical transients, and overheating.
Additional information
This 4-in-1 Lamp reduces inventory and maintenance costs while providing consumers with a more cost-effective back-end lighting system. Its innovative design also saves time and money on installation and eliminates potential leaks in vehicle. The lamp features a slim LED profile, which reduces external damage and meets electrical specifications of major Class 8 truck manufacturers.
Better Cost. Less Inventory. Less Maintenance.
 |  | ||
| Standard Lamps 4 Lamps 4 Functions 4 Holes in the Body | Grote’s New Integrated Lamp 2 Lamps 4 Functions 2 Holes in the Body | Standard Lamps 3 Lamps 4 Functions 3 or 4 Holes in the Power Module or Body | Grote’s New Integrated Lamp 2 Lamps 4 Functions 2 Holes in the Power Module or Body |
