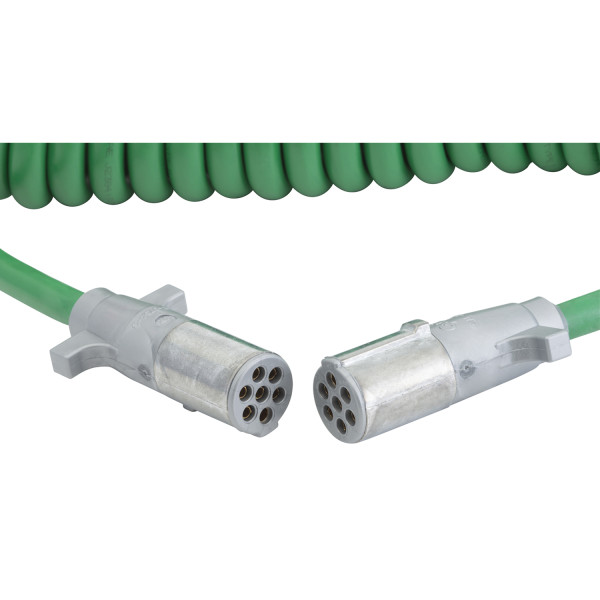

UltraLink™ ABS Power Cords

The crush-resistant design of Grote’s UltraLink Power Cords means they can survive being run over by a heavy-duty vehicle while conventional hollow core designs are permanently deformed and rendered useless.
Grote Loading Ajax Spinner

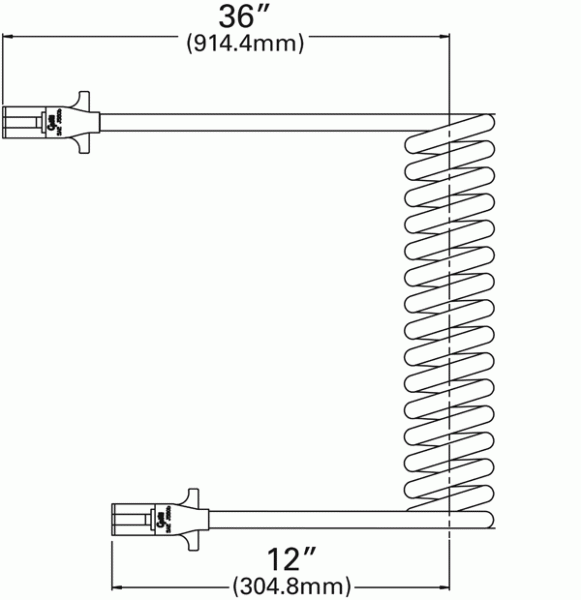

8710520' w/12" & 36" Lead, Coiled, Premium

8710520' w/12" & 36" Lead, Coiled, Premium

  • 87105 thumbnail
  • 87105 - drawing thumbnail
  • 87105 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Green
  • Length: 20'
  • Coiled or Straight: Coiled
  • Style: ABS
  • Leads: 12" & 36"
  • Plug / Socket #: 7
  • VMRS: 034-003-037
  • Operating Temperature: -85⁰F to 212⁰F (-65⁰C to 100⁰C)
  • Pack Quantity: 1
  • Gauge: 4/12 GA, 2/10 GA, 1/8 GA
  • Standards: J560b, J2394, J2222
  • Material: Polyurethane
  • Product Type: Power Cord
  • Plug: Straight
  • Warranty: 1 Year
  • Product Line: UltraLink™
Features & benefits
  • UltraLink™ power cords exceed minimum legal lamp power delivery requirements for single or double trailer configurations
  • Zinc die-cast plugs are filled with elastomeric material that resists crushing & acts as potting to seal solid brass terminals from moisture
  • Provides excellent recoil memory, chemical, and abrasion resistance
  • Adhesive bonds cable to plug, eliminating need for supporting spring and preventing moisture from entering the back of the plug
  • Solid brass terminals are corrosion resistant, and provide superior current capacity with minimal voltage drop
  • Advanced polymer jacketing material provides complete sealing and abrasion protection between -55°F and 190°F (Premium Versions)
