UBS® Harness Rear Sill Options

Grote Loading Ajax Spinner

67570Blue Drop, Female-Pin, 56" Long

67570Blue Drop, Female-Pin, 56" Long

  • UBS® Harness Rear Sill Option, 56" Long, Ground Return, Blue Drop, Female-Pin thumbnail

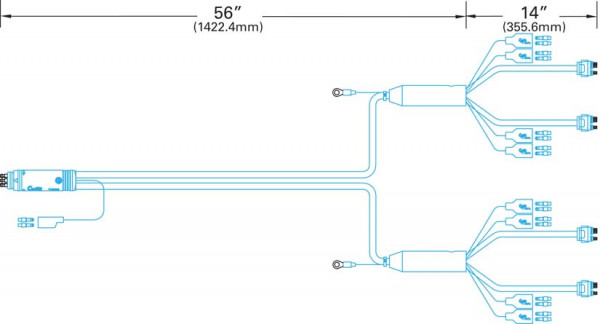

  • 67570 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Side Two: Straight PL-3/Double Standard .180" Female Bullets
  • Connector Quantity: 4
  • Connector Side One: UBS 7-Way Plugs/Double Slim-Line .180" Female Bullet
  • Wire Material: GPT
  • Color: Blue
  • Wire Gauge: 1-12 GA, 4-14 GA
  • Connection Type: Male Pin (1 Turn/1 Stop)
  • Length: 56" & 56"
  • Wire Length: 53.5" & 53.5"
  • Fits: Female pin Lamps
  • Pack Quantity: Bulk (1)
  • VMRS: 034-004-023
  • Product Type: Harness
  • # of Wires: 10
  • Style: Rear Sill
  • Product Line: Ultra-Blue-Seal®
  • Warranty: 5 Years
Features & benefits
  • Used for female pin lamps
  • Redundant frame ground with ring terminal
  • All connections weather-sealed by simple, foolproof USB plug
  • Entire harness double-jacketed for extra resistance to road-splash and abrasion
