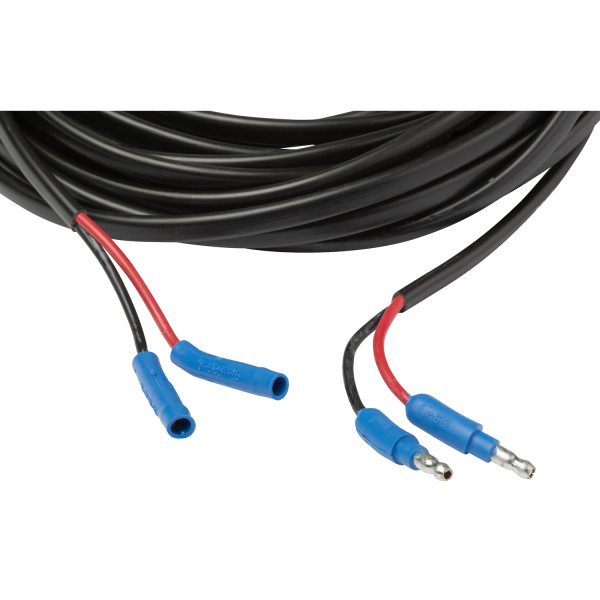

Jumper Harnesses - Two Standard Males To Two Slim-Line Under Light Females

Grote Loading Ajax Spinner

6610431' 2" Long

6610431' 2" Long

  • 66104 thumbnail
  • 66104 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Side One: Slim-Line .180" Female Bullet
  • Wire Material: GPT
  • Connector Side Two: Standard .180" Male Bullet
  • Connector Quantity: 4
  • Color: Black
  • Wire Gauge: 2-14 GA
  • Connection Type: Slim-Line .180" Female Receptacle, Standard .180" Male Bullet
  • Length: 31' 2" (374")
  • Wire Length: 373"
  • Pack Quantity: Individual (10 per carton)
  • VMRS: 034-004-023
  • Product Type: Jumper
  • # of Wires: 2
  • Style: Jumper Harness
  • Warranty: 1 Year
Features & benefits
  • Use w/ 66400 when triple-ID / Auxiliary stop is located on upper rail
  • Use the 5306 combination clearance/marker and auxiliary stop/turn signal lamp
  • Mid-turn and marker lamp harness
  • Auxiliary stop is located on upper rail, 10' 10" (130")
