Harness Repair Kits

Grote Loading Ajax Spinner

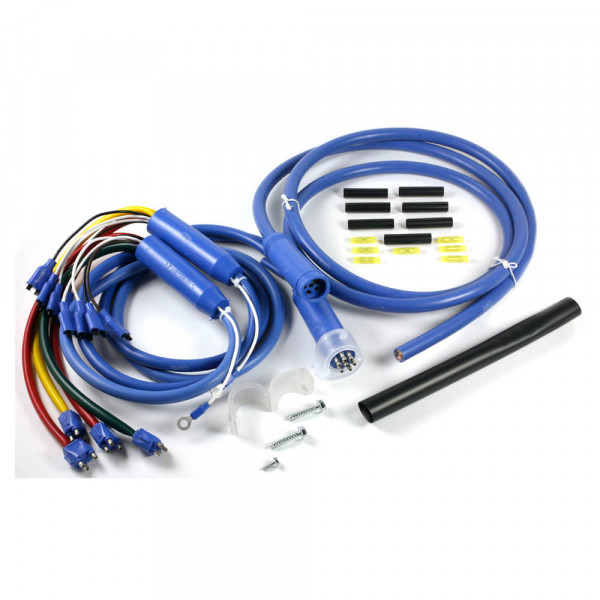

67040Rearsill & Main Repair Kit

67040Rearsill & Main Repair Kit

  • 67040 thumbnail
  • Grote product drawing - Grote Harness Kit thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Wire Material: GPT
  • Connector Quantity: 4
  • Connector Side One: UBS 7-Way Plugs
  • Connector Side Two: PL-3/Double Standard .180" Female Bullets
  • Wire Gauge: 1-10 GA, 6-12 GA
  • Connection Type: PL-3 (1 Turn/1 Stop)

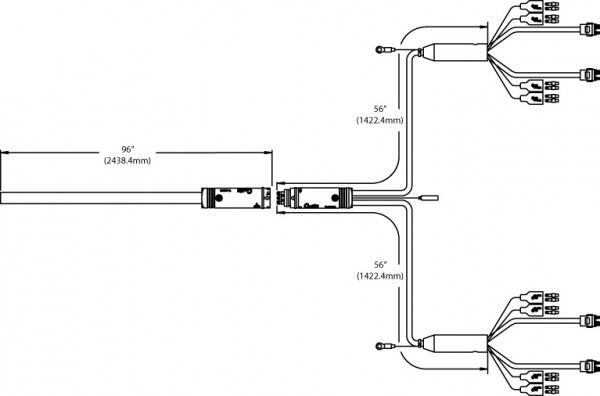

  • Length: 8' (96")
  • Wire Length: 95.5"
  • Fits: Female pin Lamps
  • Pack Quantity: Bulk (1)
  • VMRS: 034-004-023
  • Product Type: Repair Kit
  • # of Wires: 7
  • Style: Kit
  • Warranty: 1 Year
Features & benefits
  • Weather sealed lamp connections
  • Redundant frame ground with ring terminal
  • UBS 7-Way male and female connection
  • External drops for lamps provide sealed connections - no need to splice
  • Jacketed cable for wire protection
