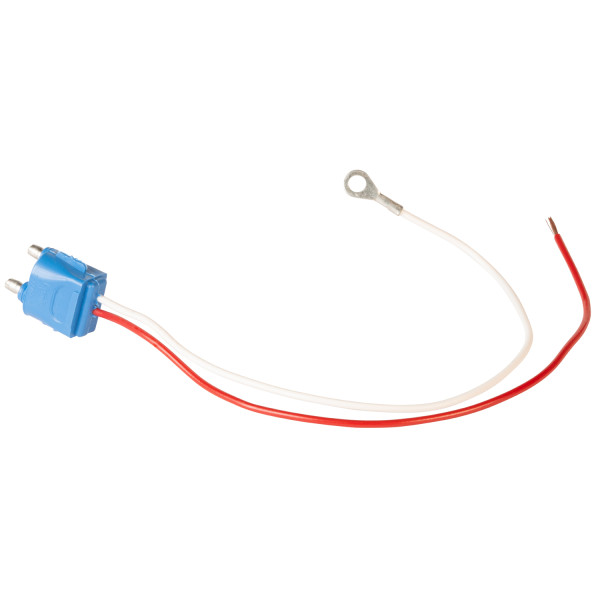

Two-Wire Plug-In Pigtails for Female Pin Lights

Grote Loading Ajax Spinner

67010Blunt Cut, Straight

67010Blunt Cut, Straight

  • 67010 thumbnail
  • 67010 - drawing thumbnail
  • 67010 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Side Two: Straight PL-3
  • Wire Material: GPT
  • Connector Quantity: 2
  • Connector Side One: Blunt Cut/Ring Terminal
  • Wire Gauge: 18 GA
  • Connection Type: Blunt Cut/Ring Terminal, PL-3

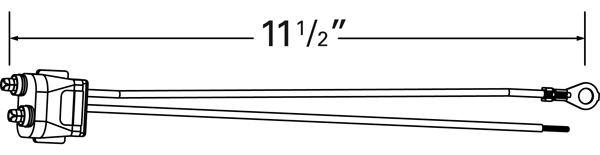

  • Length: 11 1/2"
  • Wire Length: 11"
  • Fits: Female pin Lamps
  • Pack Quantity: Individual (6), Bulk
  • VMRS: 034-002-031
  • Product Type: Pigtail
  • # of Wires: 2
  • Style: Pigtail
  • Warranty: 1 Year
Features & benefits
  • Single function, Slim-Line .180 Male Bullet, blunt cut, stop and turn
  • Includes dummy pin to help guide the pigtail into lamp
  • Molded #10 ring terminal for frame ground
  • Factory-molded plugs for ULTRA-BLUE-SEAL® trailer wiring system
