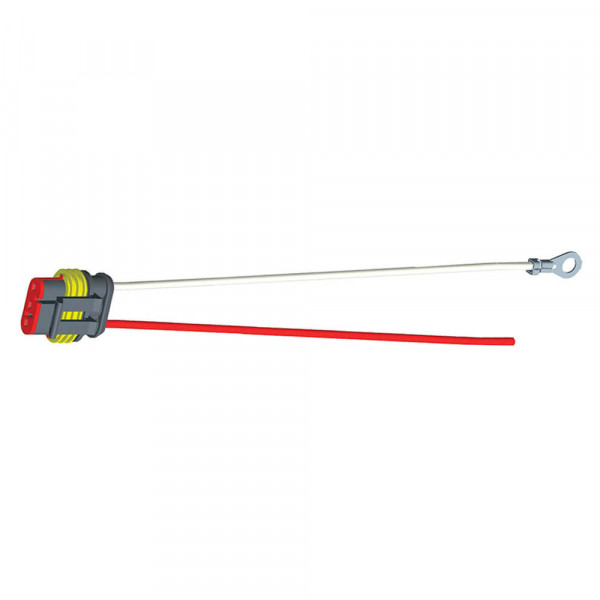

Hard-Shell Connector Pigtails

Grote Loading Ajax Spinner

66862Single Function

66862Single Function

  • 66862 thumbnail
  • 66862 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Wire Material: GPT
  • Connector Quantity: 2
  • Connector Side One: Blunt Cut/Ring Terminal
  • Connector Side Two: 3-Way Hard Shell
  • Wire Gauge: 18 GA
  • Connection Type: Blunt Cut/Ring Terminal, 3-Way Hard Shell
  • Length: 5/6' (10")
  • Wire Length: 10"
  • Fits: 4" Round and Oval STT Lamps
  • Pack Quantity: Individual (12 per carton)
  • VMRS: 034-002-031
  • Product Type: Pigtail
  • # of Wires: 2
  • Style: Pigtail
  • Warranty: 1 Year
Features & benefits
  • Blunt-cut wires
  • Standard 4-Pin Hard Shell connector for the 4-in-1 Stop Tail Turn Light with integrated back-up
  • Hard Shell connection to vehicle
  • Mates with Grote and competitive lamps using Hard Shell SuperSeal 1.5 series connectors
