Automatic Electronic Dome Light Switches with Timer

Grote's automatic dome light switches allows for multiple, simple ground-sensing switches while maintaining the integrity and reducing the overall component number of the interior lighting system. The timer is factory pre-set for 40 minutes on-time and can be manually shut off or automatically when the vehicle experiences forward/backward acceleration.
Grote Loading Ajax Spinner

44360ABS

44360ABS

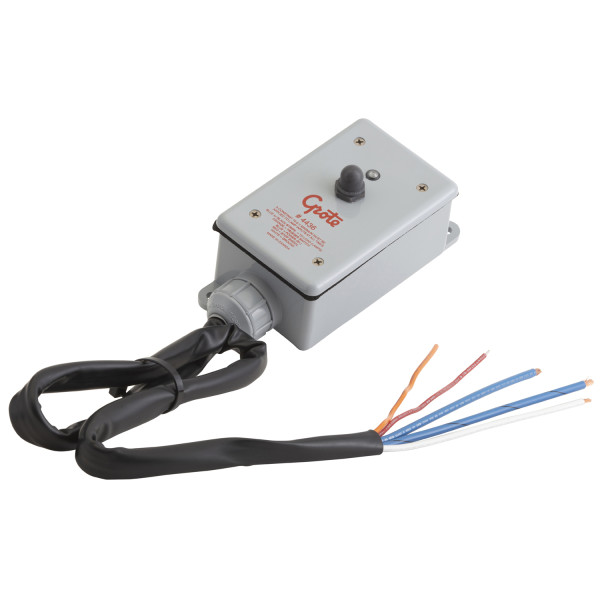

  • 44360 thumbnail

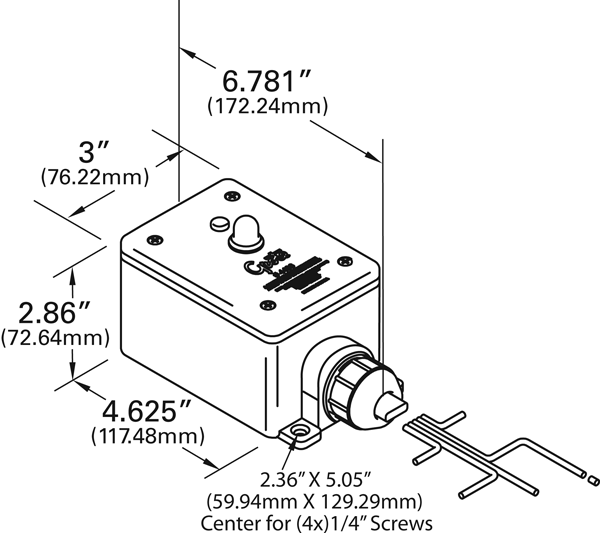

  • Automatic Electronic Dome Light Switch with Timer Drawing thumbnail

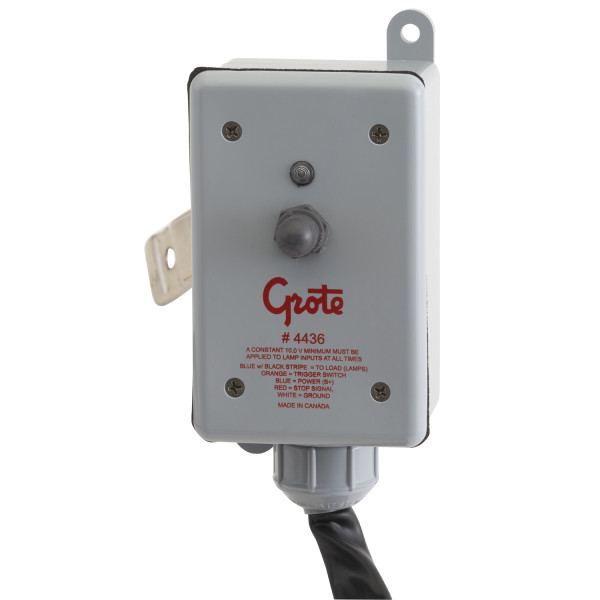

  • 44360 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: PVC
  • Color: Gray
  • Housing Color: Gray
  • Amperage: 15A (max)
  • Mounting Type: Screw
  • Connection Type: Blunt Cut
  • VMRS: 034-003-018
  • Product Type: Switch
  • # of Wires: 5
  • Warranty: 1 Year
Features & benefits
  • Timer set at 20, 40, 60, and 90 minutes (factory preset is 40 minutes)
  • Driver can completely operate the system from the trailer if using with Grote's Momentary Ground Switch 44380
  • Reduces the overall component number of interior lighting system
  • Automatic shut-down of circuit for no-fuss on/off
  • Four wire design
  • Eliminates tapping into the air brake delivery system
