High Amperage Thermal Circuit Breakers

Our high amperage thermal circuit breakers range from 40A to 200A. These circuit breakers are designed to protect your vehicle's electrical system from overcurrent, overload, and short circuit situations. All products in this category are waterproof.
Grote Loading Ajax Spinner

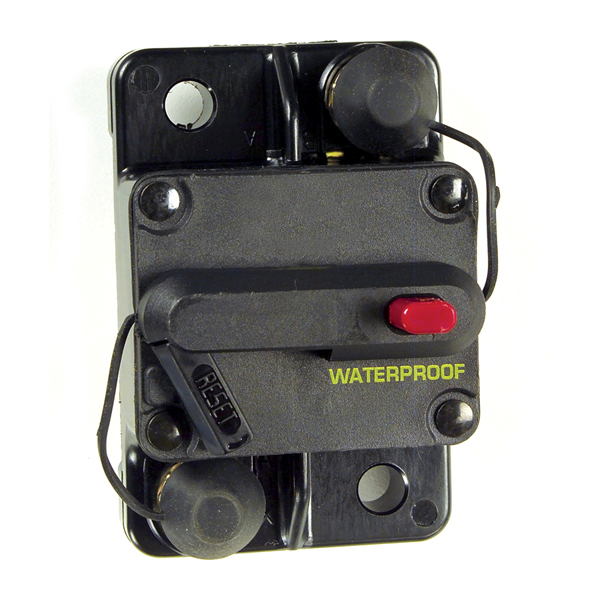

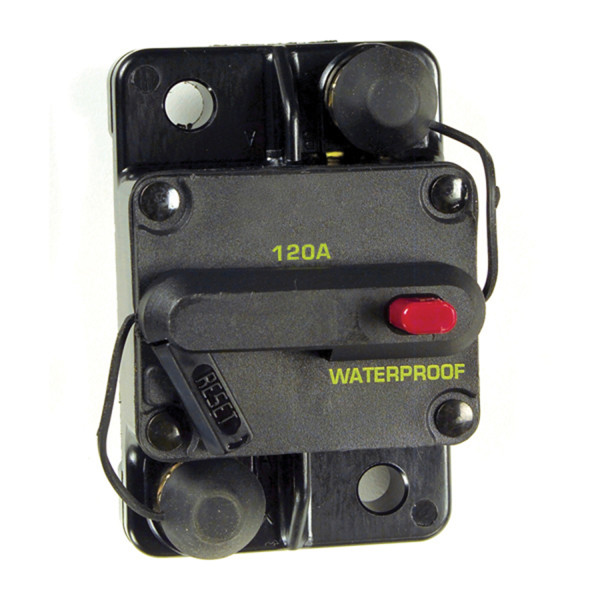

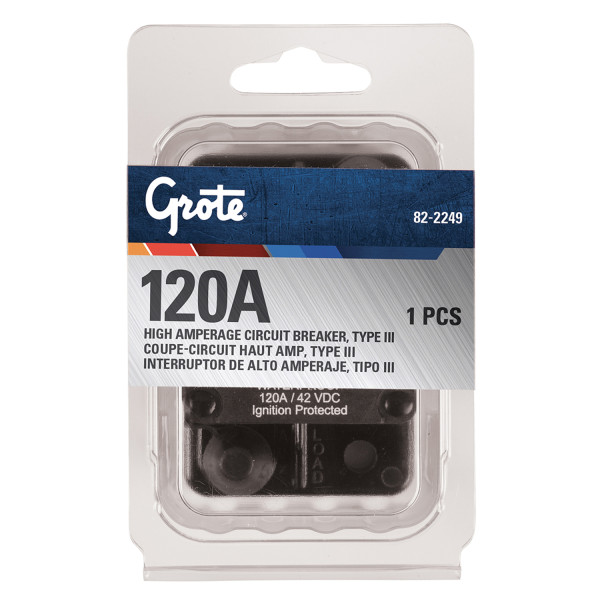

82-2249Single Rate, 120A

82-2249Single Rate, 120A

  • Circuit Breaker thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Black
  • Operating Temperature: -40°C (-40°F) to 85°C (185°F)
  • Pack Quantity: 1
  • Amperage: 120A
  • Standards: UL Rated - Housing, SAE J1625, SAE J1171
  • Stud or Tab Size: 4", 1
  • Material: Thermoplastic
  • Product Type: Circuit Breaker
  • Style: High Amperage
  • Type: Type III, Manual-Reset
  • Voltage: 42 VDC
  • Warranty: 1 Year
Features & benefits
  • Surface Mount, Type III; Single Pole
  • Thermoplastic; UL Rated 94V – 0 housing
  • Stud insulators provided; 1/4” – 28 thread studs
  • Also used as battery chargers and DC audio systems
  • Can be used in auxiliary and accessory circuits; trucks, buses, RV and marine applications
