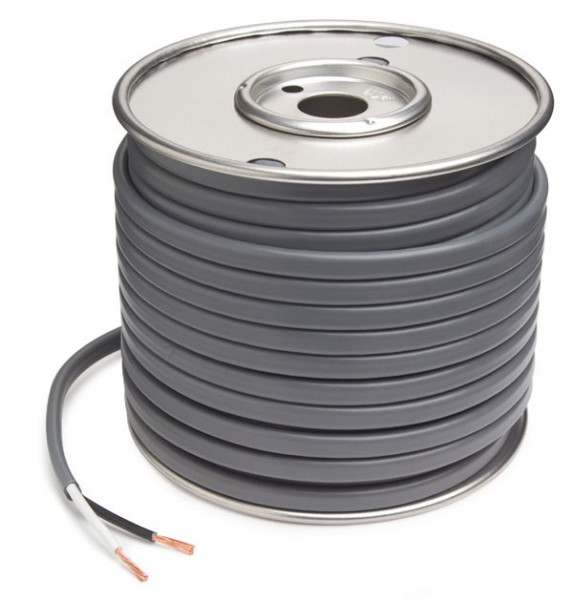

PVC Jacketed Brake Cable

Grote Loading Ajax Spinner

82-5501Length 1000′

82-5501Length 1000′

  • PVC Jacketed Brake Cable, 16 Gauge, Conductor 2, Wire Length 1000′ thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Gray
  • Length: 1000'
  • Operating Temperature: -40°C (-40°F) to 80°C (176°F)
  • Voltage: Rated to 60V
  • Pack Quantity: 1
  • Gauge: 16 GA
  • Standards: SAE J1128
  • Conductor: 2
  • Outside Diameter: .168" x .272"
  • Strand: 19
  • Material: 100% Copper
  • Product Type: Cable, Brake Cable
  • Style: PVC
  • Warranty: 1 Year
Features & benefits
  • Resists grease, oil, gasoline and acids
  • Used for automotive, truck and marine applications
  • Maximum temperature rating -40°C (-40°F) to 85°C (185°F)
  • Internal wires meet SAE J1128 specifications
  • Temperature ratings: 60°C (140°F)
