(GPT) General Purpose Thermo Plastic Wire

Grote offers 100% pure copper General Purpose Thermoplastic Wire. Available in over 9 colors, on spools ranging from 25' to 1,000', and in a variety of gauges including 12, 14, 16, 18, and 20.
Grote spinner logo

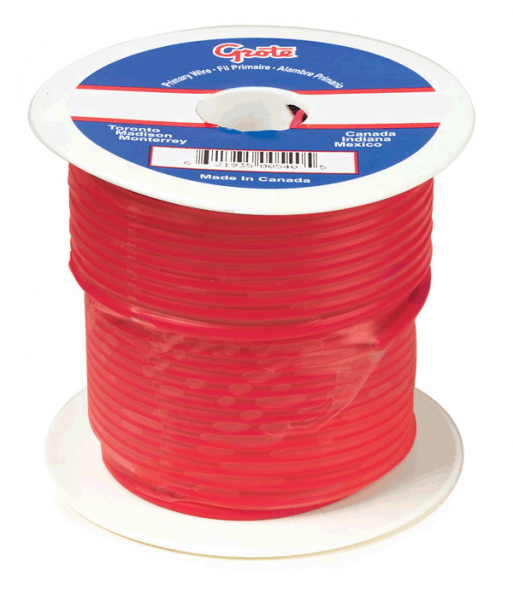

87-5000Length 100' Red

87-5000Length 100' Red

  • General Purpose Thermo Plastic Wire, Primary Wire Length 100', 10 Gauge thumbnail
  • primary wire thumbnail
View all products in this family
Technical specifications
  • Material: 100% Copper
  • Color: Red
  • Voltage: Rated to 60V
  • Gauge: 10 GA
  • Operating Temperature: -40°C (-40°F) to 80°C (176°F)
  • Length: 100'
  • Wire Length: 100'
  • Outside Diameter: .178"
  • Standards: SAE J1128
  • Pack Quantity: 1
  • Strand: 19
  • Insulation/Protection: PVC
  • Package Type: Spool
  • Product Type: Plastic Wire
  • Style: GPT
  • Warranty: 1 Year

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: 100% Copper
  • Color: Red
  • Voltage: Rated to 60V
  • Gauge: 10 GA
  • Operating Temperature: -40°C (-40°F) to 80°C (176°F)
  • Length: 100'
  • Wire Length: 100'
  • Outside Diameter: .178"
  • Standards: SAE J1128
  • Pack Quantity: 1
  • Strand: 19
  • Insulation/Protection: PVC
  • Package Type: Spool
  • Product Type: Plastic Wire
  • Style: GPT
  • Warranty: 1 Year
Features & benefits
  • Temperature rating -40°C (-40°F) to 80°C (176°F)
  • Available in 25', 100' spools, 1000' also available
  • Single conductor PVC jacket resists grease, oil, gasoline, acids & other abrasive materials
  • Meets SAE code J1128 specifications
  • Used for automotive, truck & marine applications
