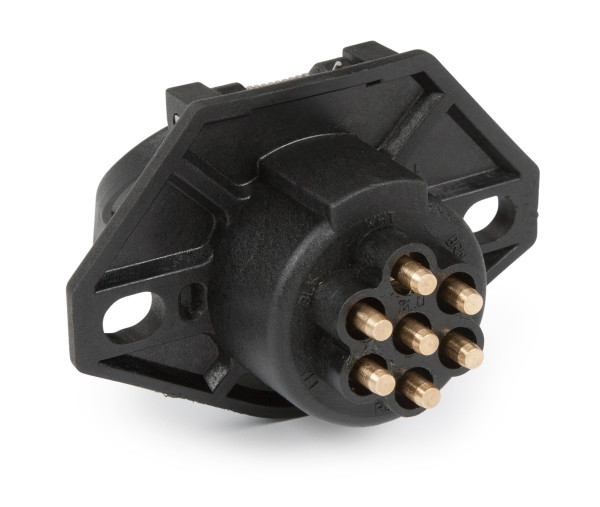

Heavy Duty 7 Pole Sockets
Grote’s Heavy Duty 7-Way Sockets are designed to meet and exceed SAE J560 specifications. Our quality features include a reliable closure spring, industry standard mounting holes, and solid brass terminals for optimal conductivity.
Compare
0 Product Added
Technical specifications
- Pack Quantity: 1
- Standards: SAE J560

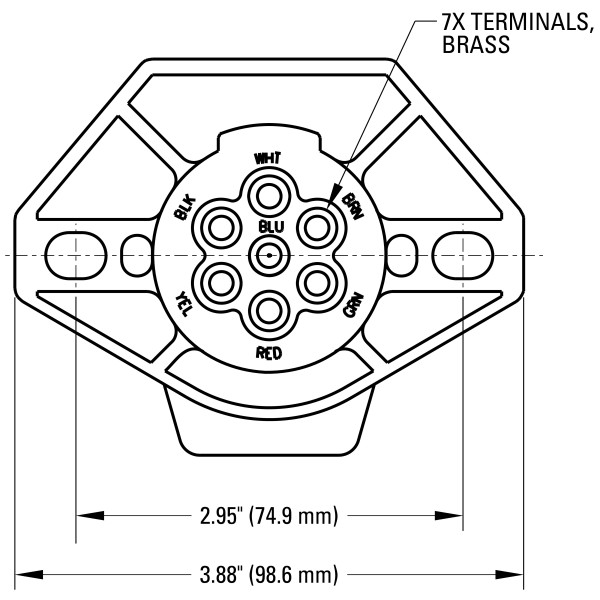

- Mtg Hole: 2 x 0.50"
- Material: Nylon
- Product Type: Socket
- Package Type: Polybag
- Style: Bullet Termination
- Warranty: 1 Year
Features & benefits
- Circuit identification on the back of the socket
- Terminals accept 16-10 gauge wires; 8 gauge ground wire

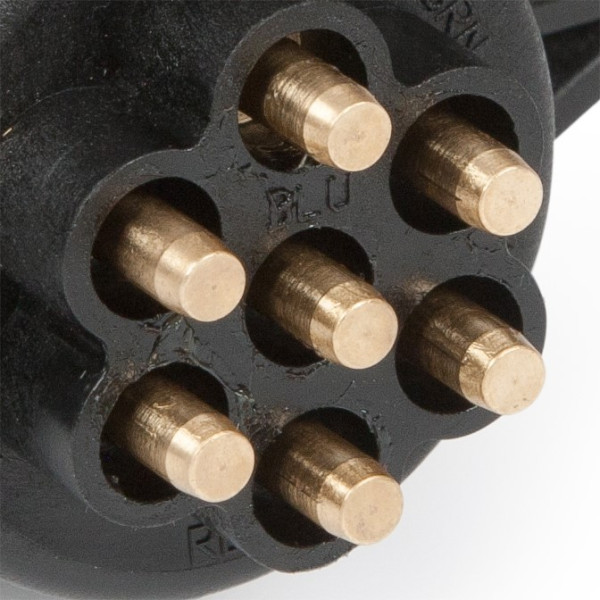

- Solid brass pin terminals for best conductivity
- Housing provides superior corrosion resistance
- Plated-steel cable guards prevent cable chafing
- Terminals accept from #16 wire to #8 ground wire
- Circuit identification on the back of the plug & socket
Additional information
| # | Color | Circuits | Recommended Wire Gauge |
|---|---|---|---|
| 1 | White | Ground Return | 8 GA |
| 2 | Black | Clearance, Side Marker, Identification Lamp | 12 GA |
| 3 | Yellow | Left Turn Signal, Hazard Signal | 12 GA |
| 4 | Red | Stop Lamps, Anti-Lock Devices | 10 GA |
| 5 | Green | Right Turn Signal, Hazard Signal | 12 GA |
| 6 | Brown | Tail, Rear Clearance, Marker and License Lamps | 12 GA |
| 7 | Blue | Auxiliary Circuit, ABS |
10 GA |
