Heavy Duty 6-Way Connectors

Utilizing brass pin terminals for the best conductivity, Grote's Heavy Duty 6-Way Connectors ensure sufficient power is delivered to an entire vehicle lighting and safety system.
Grote Loading Ajax Spinner

82-1016Socket With Enclosed Terminals

82-1016Socket With Enclosed Terminals

  • Heavy Duty 6-Way Socket Connector With Enclosed Terminal thumbnail

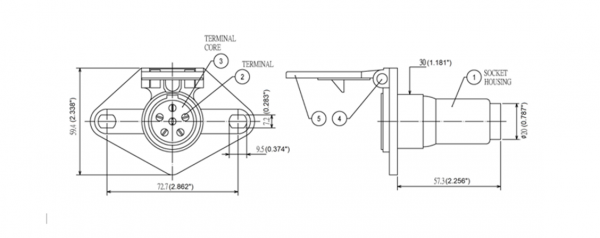

  • 82-1016 Line Drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Pack Quantity: 1
  • Standards: SAE J560
  • Material: Zinc die-cast
  • Product Type: Socket
  • Style: Heavy-Duty
  • Terminals: split pin, enclosed
  • Warranty: 1 Year
  • Voltage: 12-24V
Features & benefits
  • 2 mounting holes - 0.28” by 0.37”
  • Mount holes 2.86” center to center of screw holes
  • 2, 1/2" mounting holes
  • Terminals accept up to #12 gauge wires
  • Solid brass pin terminals for best conductivity
  • Plated-steel cable guards prevent cable chafing
  • Die-cast housing for superior corrosion resistance
  • Circuit identification on the back of the plug & socket
  • Replaceable plug & socket interiors help reduce maintenance costs
