7-Way R.V. Connectors

Grote Loading Ajax Spinner

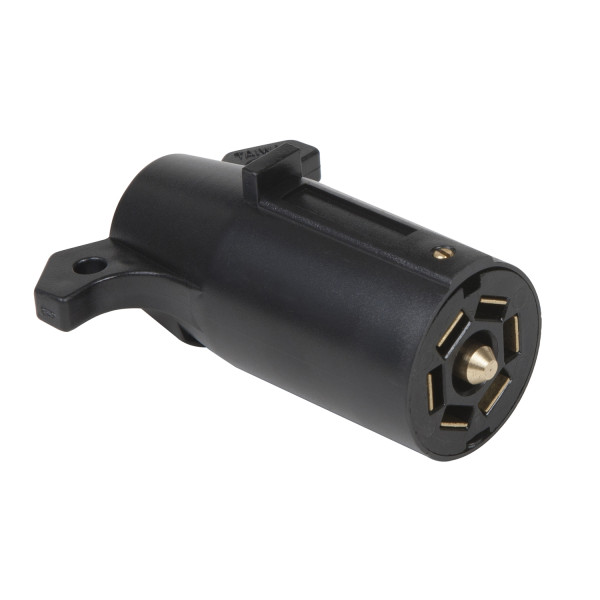

82-1056Plug Only

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Pack Quantity: 1
  • Standards: SAE J560
  • Conductor: 7
  • Material: Nylon
  • Product Type: Connector
  • Voltage: 12-24V
  • Warranty: 1 Year
Features & benefits
  • Mount holes 2.24” and 1.48” center to center of screw holes
  • Terminals accept 16-10 gauge wires; 8 gauge ground wire
  • Fits Ford Style/Universal Mounts
  • Solid brass pin terminals for best conductivity
  • Housing provides superior corrosion resistance
  • Plated-steel cable guards prevent cable chafing
  • Terminals accept from #16 wire to #8 ground wire
  • Circuit identification on the back of the plug & socket
