Heat Shrinkable Bullet & Receptacle Connectors - Crystal Clear

All new Opti-Seal, Crystal Clear Heat Shrinkable Connectors see through design allows for visual inspection during installation and for the life of the terminal. The extra-long barrel ensures a better stacking option and eliminates the overlap of heat shrink material from impeding the connector mounting hole.
Grote Loading Ajax Spinner

84-444716-14 Gauge, .180"

84-444716-14 Gauge, .180"

  • 84-4447 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Clear w/blue stripe
  • Connection Type: Male Bullet
  • Operating Temperature: -55°C (-67°F) to 125°C (257°F)
  • Gauge: 16-14 GA
  • Functions: Heat Shrinkable
  • Pack Quantity: 15
  • Material: Cross-linked ionic polymer
  • Voltage: 600V
  • Stud or Tab Size: .180"
  • Shrink Ratio: Exceeds 2.5 to 1
  • Package Type: Clamshell
  • VMRS: 053-007-002
  • ROHS: Yes
  • Feature: Adhesive-lined
  • Warranty: 1 Year
Features & benefits
  • 45˚ barrel provides visual inspection that the wire is stripped proper length & fully seated
  • Color-coded stripes identify wire gauge size to be used with connector and indicate/guide where to position crimp nest to install properly
  • Copper ferrule inserted over brass terminal to provide strong mechanical termination
  • Available in 22-18 (red), 16-14 (blue), & 12-10 (yellow) 0.180” & 0.157” Diameters
Find a Local Distributor

Related videos

Customer reviews

  • It doesn't look as though anyone has left a review for this product yet, be the first?
Leave a review keyboard_arrow_right

I consent to my data being processed and published by Grote Industries

I would like to be added to the Grote Industries email marketing list.

By ticking this checkbox, you are agreeing that we can process and securely store your data. Your review, rating, your first name and the initial of your last name will be published on the website. Any of your other personal information such as your email address will only be used for administrative purposes in accordance with our privacy policy.

This is a response from the server

Any HTML tags (such as links) will be automatically removed, this helps us to reduce spam. Reviews are moderated by an administrator before they will appear on the website.
rolling logo ajax spinner

Please rate the selected product out of 5.

Similar products you may be interested in
Weather Pack Terminals, 20 - 16 Gauge, Male, 1000pk

Weather Pack Terminals
Heat Shrinkable Bullet & Receptacle Connectors, 16 - 14 Gauge, .197" Bullet Size, 15pk, Male

Heat Shrinkable Bullet & Receptacle Connectors
Deutsch - DTM Series Terminals, 24 - 20 Gauge, Male Solid Barrel

Deutsch - DTM Series Terminals
heat shrinkable solder splice connector

Heat Shrink & Solder Splice Connectors
Vinyl Receptacle Connectors, 22 - 18 Gauge, .156" Size FI, Female, 15pk

Vinyl Receptacle Connectors
In-Line 20-18 Gauge Sealed Multiple Wire Heat Shrink Connector

Sealed Multiple Wire Heat Shrink Connectors
Heat Shrink & Solder Quick Disconnects, 22 - 18 Gauge, .250" Stud Size FI, 25pk, Female

Heat Shrink & Solder Quick Disconnects
Quick Splice Self Stripping Connectors, Tap Connector, 22 - 18 Gauge, 1000pk

Quick Splice Self Stripping Connectors

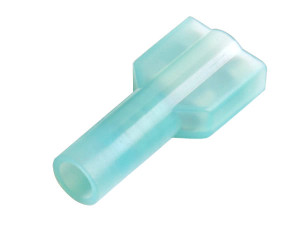

Nylon Female Quick Disconnect Flag, 22 - 18 Gauge, .250" Size FI, Female, 15pk
