Auxiliary Strobe & Stop Lamps

Learn More

It's simple. Research shows that improved visibility prevents accidents

Outfitting your fleet with Grote’s new Auxiliary Strobe & Stop Lamp may reduce the risk of rear-end collisions by more than one half.

Based on recent studies conducted by two independent carriers over a 2-year period and 700,000,000 miles, results indicate that Grote's Auxiliary Strobe & Stop lamps can reduce rear-end collisions by more than 50%. In addition, in these studies the severity of the collisions was reduced by over 75%.

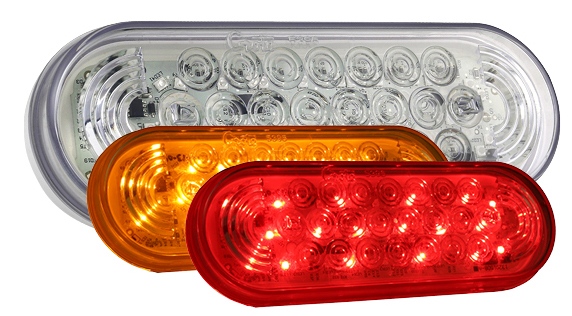

Grote 6 Inch Oval Strobe & Stop Lamps

Bracket or Grommet Mount

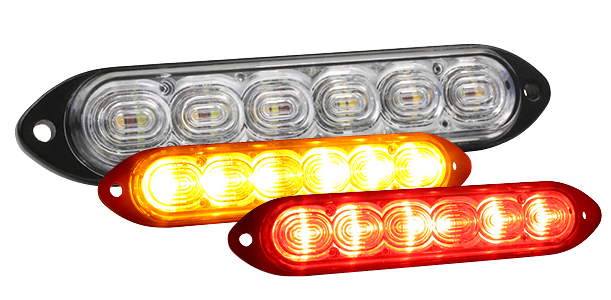

Grote Compact Auxiliary Strobe & Stop Lamps

Surface Mount

Meets Standards

  • SAE J595 Class II for amber warning
  • SAE J186a Sep 1977 for Supplemental High Mounted Stop & Rear Turn Signal
  • SAE J1889 Jul 2019 for LED Signal and Marking Light

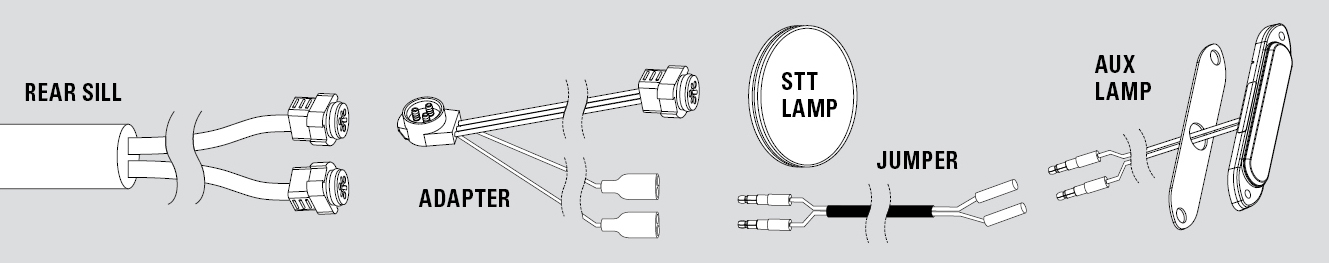

Connecting to Trailer

GROTE 6 INCH OVAL

79212 6” Oval Auxiliary Stop & Strobe Lamp
79212-3 6” Oval Auxiliary Stop & Strobe Lamp bulk pack
01-6648-94 Pigtail, 12”
01-6681-S6 Pigtail, 30”
01-6648-92 Pigtail, 96”
01-6682-J5 Pigtail, 144”
01-6686-L9 Hardshell; Rearsill to S/T/T to Jumper to Lamp Y Adapter
01-6684-A1 Male Pin: Rearsill to S/T/T to Jumper to Lamp Y Adapter
01-6684-A2 Female Pin: Rearsill to S/T/T to Jumper to Lamp Y Adapter
67006 Hardshell to Male Pin Adapter

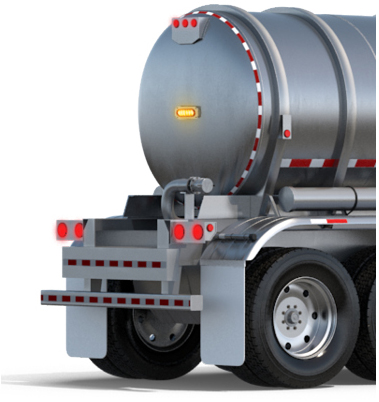

Easy to Install on Tanker Trailers

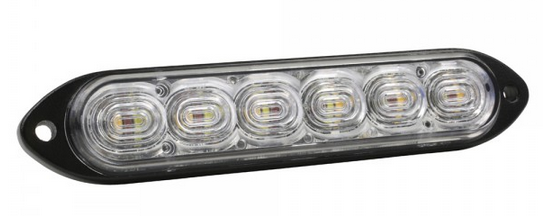

Compact Surface Mount

Hardwired to Male Bullets

78462 Compact Auxiliary Stop & Strobe Lamp
78462-3 Compact Auxiliary Stop & Strobe Lamp bulk pack

Option

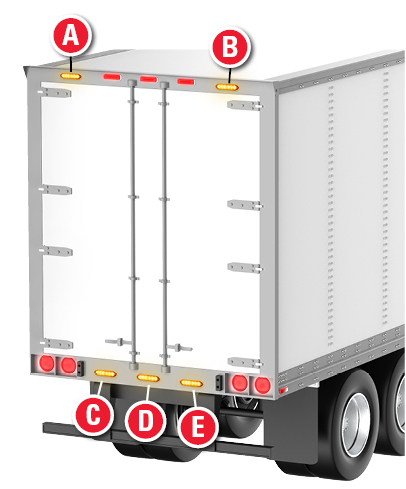

Trailer Lamp Placement Options
1 2 Lamps at Top
Positions A & B
2 1 Lamp at Bottom
Position D
3 2 Lamps at Bottom
Positions C & E
4 2 Lamps at Top and 1 at Bottom
Positions A, B & D
5 2 Lamps at Top and 2 at Bottom
Positions A, B, C & E

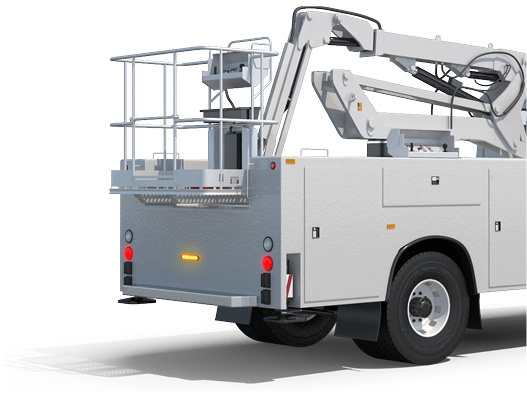

Easy to Install on Trailers and Truck Bodies

Jumpers

Plug into adapter and Aux Strobe & Stop Lamp

01-6613-T1 24"
01-6624-E6 36"
66133 52"
01-6623-85 90"
01-6685-C1 124"
01-6685-C2 148"
66450 235"

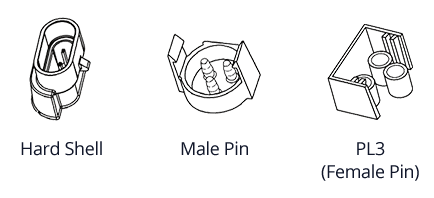

Adapters

Plug into Stop/Tail/Turn, rearsill, to a jumper

01-6686-L9 Hardshell
01-6684-A1 Male Pin
01-6684-A2 Female Pin
