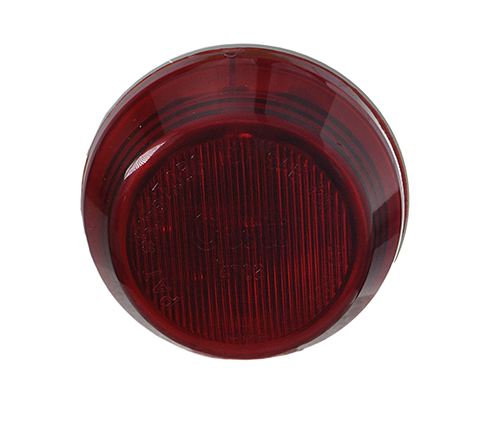

Hi Count® 2 1/2" 9-Diode LED Clearance Marker Lights

Grote's Hi Count® 2 1/2" 9-Diode LED Clearance Marker Lights are designed to fit most popular mounts and are twist-on mounted for easy installation.
Grote Loading Ajax Spinner

G1092

G1092

  • G1092 360 thumbnail
  • G1092 thumbnail

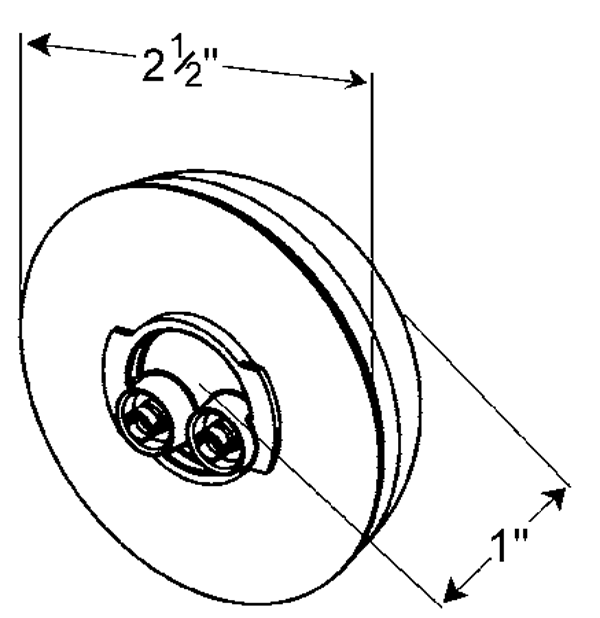

  • Grote product drawing - 9 diode led clearance marker light thumbnail
  • G1092 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Red
  • Product Line: Hi Count®
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Lens Color: Red
  • Shape: Round
  • Amperage: .04A
  • Size: 2½"
  • Functions: P2
  • Regulations: FMVSS 108
  • VMRS: 034-004-253
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Product Type: Clearance Marker
  • Diameter: 2.5"
  • Housing Color: White
  • Warranty: 2 Years
Features & benefits
  • Hermetic lens to housing seal
  • Twist-on mounting for easy installation
  • Fits all popular mountings and grommets
  • Uses the same UBS double-seal pigtail as the incandescent version for a quick retrofit
